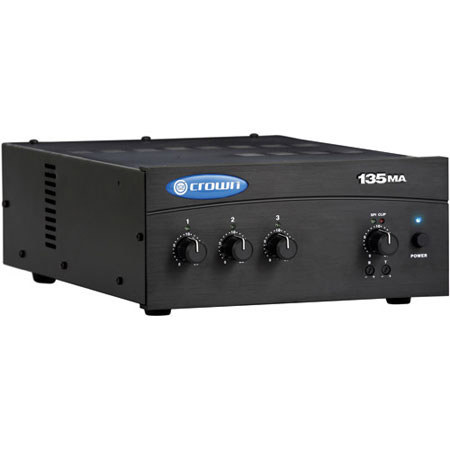

Crown Audio 135MA 3-Channel 35 Watt Commercial Mixer/Amplifier

SKU: CRW135MA MFR: G135MA
Earn VIP Reward Points

Key Features

  • Reliable Crown Audio amplifier delivers 35W for clear, powerful sound in any setting.
  • Perfect for background music & paging, this commercial amplifier is easy to install.
  • Enjoy versatile connectivity with RCA & Phoenix inputs on this installed amplifier.
  • Optimize sound with a wide frequency response of 19Hz-34kHz from this audio amplifier.
  • Compact mixer/amplifier design fits seamlessly into any space; desktop or rack mount.
  • Trust in Crown Audio's 6-year warranty, ensuring lasting performance of your amplifier.
See More Product Details
Special Order Item?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : how many speakers will this drive?BRIAN H : How outputs are available

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Crown Audio 135MA Specifications

  • Power Output

    35W

  • Frequency Response

    19Hz - 34kHz (+0, -3dB)

  • Distortion

    < 0.5% @ Rated Power

  • Sensitivity

    Input 1: Mic 3mV, Line 800mV
    Input 2: 400mV
    Input 3: 400mV

  • Signal to Noise Ratio

    Mic: > 58dB
    Line: > 60dB
    Telephone: 60dB
    Other Inputs: > 78dB

  • Connectors

    1 x Phoenix Input
    2 x Stereo RCA Inputs
    1 x Phoenix Preamp Output
    1 x Phoenix Telephone MOH Output
    1 x Screw Terminal Barrier Strip Output (8 Ohm, 70/100V)
    1 x AC Power Input

  • Indicators

    LEDs for Power, Signal and Clip

  • Dimensions (WxHxD)

    9.5 x 3.5 x 12.2" (241 x 89 x 310mm)

  • Weight

    8.1 lbs (3.7kg)

  • UPC Code

    871015002705

3 Accessories for Crown Audio 135MA 3-Channel 35 Watt Commercial Mixer/Amplifier

  • All Accessories (3)
  • Cables & Adapters (3)

About Crown Audio 135MA

A professional-grade solution for commercial audio needs, the 135MA 3-Channel 35 Watt Commercial Mixer/Amplifier from Crown Audio is expertly designed to handle tasks such as paging, background music, and music-on-hold systems. This robust mixer/amplifier boasts three distinct inputs, each equipped with a dedicated volume control, and a potent 35W amplifier output for superior sound quality.

For versatile connectivity, the 135MA accepts signals through balanced Phoenix inputs or stereo RCA inputs, offering flexibility for various audio sources. The output can be channeled through either 8 Ohm or 70/100V constant voltage outputs, catering to different speaker systems. Additionally, a telephone output is included, further expanding its functionality.

One of the standout features of this commercial mixer/amplifier is its priority muting capability, which can be activated by VOX or an external switch, ensuring important announcements are heard clearly. The master output is equipped with a front-panel level control knob for easy volume adjustments, as well as individual bass and treble controls for precise sound customization.

Despite its extensive features, the 135MA maintains a compact design, housed in a lightweight frame that weighs less than 10 pounds, making it a convenient and portable choice for professional audio setups. This Crown Audio mixer/amplifier is a comprehensive solution for businesses seeking high-quality, reliable, and versatile audio equipment.

Crown Audio 135MA Features

  • Professional 3-input, 1-output mixer/amplifier
  • Individual volume controls for each input
  • Stereo RCA and Phoenix inputs
  • Phoenix preamp and telephone outputs, as well as screw terminal speaker outputs
  • Priority muting via VOX or external switch
  • Individual bass and treble controls on the master output
  • Built-in protection circuitry for overheating, overload and DC fault

Key Features

  • Reliable Crown Audio amplifier delivers 35W for clear, powerful sound in any setting.
  • Perfect for background music & paging, this commercial amplifier is easy to install.
  • Enjoy versatile connectivity with RCA & Phoenix inputs on this installed amplifier.
  • Optimize sound with a wide frequency response of 19Hz-34kHz from this audio amplifier.
  • Compact mixer/amplifier design fits seamlessly into any space; desktop or rack mount.
  • Trust in Crown Audio's 6-year warranty, ensuring lasting performance of your amplifier.

What's in the box:

  • Crown Audio 135MA 3-Channel 35 Watt Commercial Mixer/Amplifier
  • Power Cord
  • 3 x Phoenix Connectors
  • Screw Terminal Cover
  • Crown Audio 6 Year Warranty
