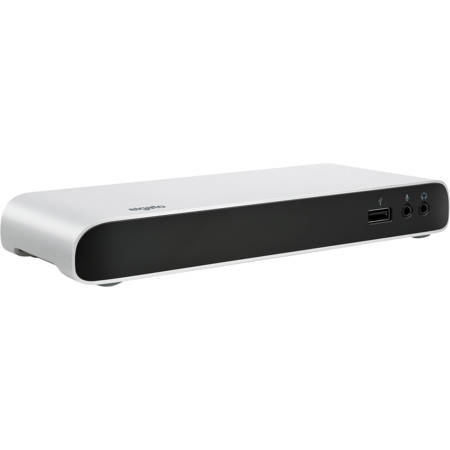

Elgato Thunderbolt 3 Dock

SKU: CS10DAA4101

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PETE K : Good reviews onlineMichael H : connections

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elgato Thunderbolt 3 Dock Specifications

Connections

Connections

Jump to...
  • USB

    3x USB 3.1 / USB 3.2 Gen 1 Type-A (1.5 A)

  • Thunderbolt

    1x Thunderbolt 3

  • Ethernet

    1x RJ45 (10/100/1000 Mb/s)

  • FireWire

    None

  • Display

    1x DisplayPort

  • Audio

    1x 1/8" (3.5mm) Headphone
    1x 1/8" (3.5mm) Microphone

  • Memory Card Slots

    None

Host Connections

Jump to...
  • System Connection

    1x Thunderbolt 3 Female

General

Jump to...
  • Maximum Resolution Supported

    4096 x 2160

  • Operating System Support

    Windows, macOS/OS X

  • DC Input Power

    20 VDC at 8.5 A

  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

  • UPC Code

    813180020498

About Elgato Thunderbolt 3 Dock

One Cable. No compromises
Elgato Thunderbolt 3 Dock enables you to connect everything to your computer at once. Use only one cable to drive dual displays, network at full speed, charge your MacBook Pro and more - and harness the full potential of USB-C.

New: Up to 2x 4K

No-compromise displays
Elgato Thunderbolt 3 Dock features a built-in DisplayPort that can drive any display up to 4K resolution. Whether you're looking for a professional-grade setup to meet your standards of color reproduction, a non-glare solution to cope with reflections in your office, or a display that surpasses all others in size, benefit from built-in versatility that meets your demands. Better yet, simultaneously connect a second 4K display to the USB-C port and enjoy unmatched productivity, without compromise.

Stand-alone Charging

No-compromise power
Providing up to 85 W of power, Elgato Thunderbolt 3 Dock charges your MacBook Pro or Windows notebook via the same cable you use to connect it. Gone are the days of lugging around your power brick, or running out of juice if you forgot to pack it. Your USB devices will also benefit from superior power management: USB-C accessories are always properly powered with up to 15 W, while the built-in USB 3.0 ports can even charge your iPad, boost your 'Phone charge, or power your Apple SuperDrive. And don't think twice if you need to shut down or head out - Elgato Thunderbolt 3 Dock will charge your devices regardless of whether your computer is off or disconnected.

No-compromise versatility.
Elgato Thunderbolt 3 Dock offers two Thunderbolt 3 ports: one to connect and charge your computer, and one to extend the versatility of Thunderbolt even further. Connect cutting-edge accessories such as a 5K Thunderbolt 3 display, an ultra-fast storage solution, or an adapter for your legacy Thunderbolt 2 devices. And thanks to the versatility of USB-C, you can also opt to connect your USB accessories or an additional display to the same port - just as you would on your MacBook Pro or Windows laptop, minus the cable mess.

No-compromise access.
With three SuperSpeed USB 3.0 ports, your workspace remains organized even when you unplug your notebook. Rest assured that your backup drive is there to provide safety in the background, and don't keep re-plugging your devices in and out because of your computer's limitations. Even better, an easily accessible USB port on the front of Elgato Thunderbolt 3 Dock makes plugging in that client's thumb drive a breeze, without having to deal with adapters or unreliable connections.

No-compromise networking.
Wired network connections are faster and more reliable than any Wi-Fi network, and with Elgato Thunderbolt 3 Dock, you can tap into the full performance of Gigabit Ethernet. Enjoy speedy connections to your servers, uninterrupted downloads from the internet and reliable file transfers with your co-workers - without an additional adapter dangling awkwardly from the side of your notebook.

No-compromise convenience
When its time to leave, individually ejecting external drives can be a hassle. With the free Elgato Thunderbolt Dock Utility, avoiding data loss is just a click in your menu bar away: conveniently eject all storage devices at once and immediately see when its safe to disconnect your Elgato Thunderbolt 3 Dock. Enjoy unplugging from work - quicker.

No-compromise sound
Even your headphones can stay connected with the built-in, amplified, stereo audio port. An additional, independent audio input port enables you to simultaneously connect a high-quality microphone for crystal-clear conference calls, or any other project that profits from having your voice heard.

Elgato Thunderbolt 3 Dock Features

  • Connect everything to your MacBook Pro or Windows laptop at once
  • Charge your MacBook Pro or Windows laptop with up to 85W through the same cable you use to connect to the dock
  • Two Thunderbolt 3 USB-C ports: extended versatility, including 5K display support; dual display support: resolution up to 2x 4K
  • Three USB 3.0 ports: high-power device support for iPad, SuperDrive, and more
  • The no-compromise foundation that extends connectivity, audio, video, and network
  • Easy eject software button to ensure data safety
  • Compatible with Mac (macOS Sierra 10.12 or later Thunderbolt 3 port), PC (Windows 10 or later Thunderbolt 3 port)

Key Features

  • Connect everything to your MacBook Pro or Windows laptop at once
  • Three USB 3.0 ports: high-power device support for iPad, SuperDrive, and more
  • The no-compromise foundation that extends connectivity, audio, video, and network
  • Easy eject software button to ensure data safety

What's in the box:

  • Thunderbolt 3 Dock
  • Cable (50cm)
  • Power Supply
  • Elgato 1 Year Limited Warranty
