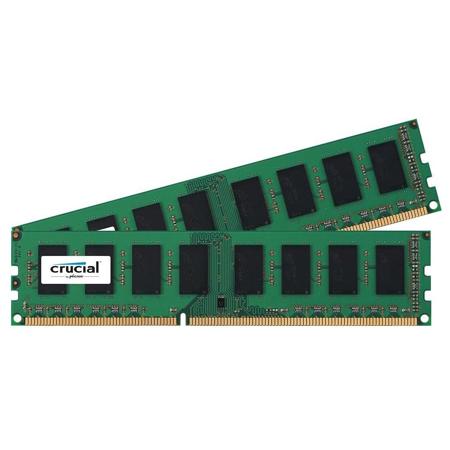

Crucial 8GB (2x 4GB) 240-Pin UDIMM DDR3 (PC3-12800) Server Memory Module Kit, CL=11, Unbuffered, 1600 MT/S Speed, Non-ECC, 1.35V, 512Meg x 64

Desktop modules that operate at speeds up to 1600 MT/s and have a CL11 latency. It is dual voltage and can operate at 1.35V or 1.5V. It is Unbuffered and is non-ECC. It conforms to the industry standard UDIMM layout of 240 pins and is compatible with computers that take DDR3 UDIMM memory.

A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.

Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket.

The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.
