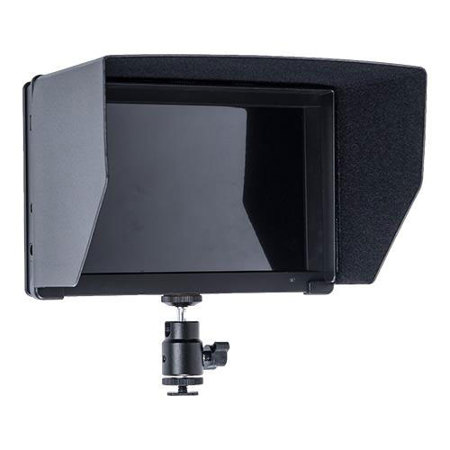

Came-TV 705-SDI 7" IPS Full HD 3G-SDI 4K HDMI On-Camera LED Monitor with Speaker, 1920x1200

SKU: CT705SDI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Came-TV 705-SDI Specifications

  • Screen Size

    7" IPS

  • Resolution

    1920x1200 pixels

  • Pixel Pitch (HxW)

    0.07875 x 0.07875mm

  • Aspect Ratio

    16:10

  • Brightness

    450 cd/m2

  • Contrast Ratio

    1200:1

  • Backlight

    LED

  • Viewing Angle

    80 deg. /80 deg. (L/R) 80 deg. /80 deg. (U/D)

  • Input

    3G-SDI: 1x BNC
    HDMI: 1x HDMI

  • Output

    3G-SDI: 1x BNC
    HDMI: 1x HDMI

  • Audio

    Stereo Headphone, Speaker

  • SDI Support Format

    480i/576i
    720p(60/59.94/50/30/29/25/24/23.98)
    1080i(60/59.94/50)
    1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

  • HDMI Input/ Output Support Format

    480i/576i/480p/576p
    1080i (60/59.94/50)
    720p (60/59.94/50/30/29/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
    4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

  • Input Voltage

    DC 6.5-24V

  • Power Consumption

    <=9W

  • Working Temperature

    -20 to 55 deg. C (-4 to 131 deg. F)

  • Storage Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Install Way

    1/4"-20 Thread Socket (bottom)

  • Battery Plate

    F970 (Standard); D28S/D54, LP-E6, U60 (Optional)

  • Dimensions (LxHxD)

    180 x 120 x 22mm (7.09 x 4.72 x 0.87")

  • Weight

    Without F970 Battery Plate: 320g (11.29 oz)
    With F970 Battery Plate: 350g (12.35 oz)

  • UPC Code

    614993190374

About Came-TV 705-SDI

Came-TV 3G-SDI 4K HDMI On-camera IPS Monitor features a 7-inch full HD large screen with a resolution of 1920x1200 and pixel density up to 323PPI. The 160 deg. wide viewing angle IPS monitor allows the operator to have a clear, easy-to-see image as they move around while fliming. The monitor uses the professional Rec.709 HD color standard and is professionally calibrated at the factory, providing accurate color reproduction. Specially designed to merge portability along with functionality, 22mm thickness, 320g lightweight, the ultra-thin / lightweight monitor gives you freedom to shoot well anywhere.

Easy to operate buttons allow you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, provide fast access to the functions you need, focus assist, false color, exposure, embedded audio etc. Featuring 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It has the ability to display live picture on multiple displays at once while still maintaining the original video quality.

What's in the box:

  • Came-TV 705-SDI 7 " IPS Full HD 3G-SDI 4K HDMI On-Camera LED Monitor
  • Removable Hood
  • Ball Head Shoe Mount
  • HDMI Cable
  • Came-TV 1 Year Warranty
