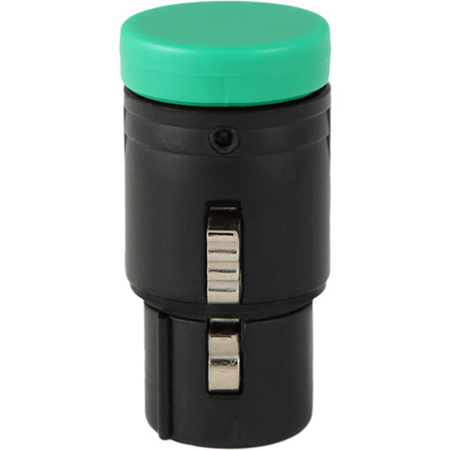

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell, Standard/Green Cap

SKU: CTAX3FG MFR: CT-AX3F-G
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this low-profile, right-angle female XLR connector.
  • Maximize space in tight setups; this XLR adapter's right-angle design keeps cables tidy.
  • Enjoy durable performance with a zinc diecast shell and robust bronze contacts for audio.
  • Customize your setup; the green cap adjusts from 60° to 300° on this XLR connector.
  • Ensure reliable connections; this 3-pin female XLR is rated for 1,000+ operations.
  • Wide compatibility: solder termination and a compact design make this XLR ideal for many cables.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Green
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

It is a durable and high-quality Low-Profile Right-Angle XLR 3-Pin Female Connector, designed by the reputable brand, Cable Techniques. This connector is engineered with an A-Shell, which offers an adjustable multi-angle cable exit at 120 degrees, either at 3 o'clock or 9 o'clock positions. Its matte black shell is complemented by gold pins, adding to its reliability and longevity.

The standard cap of this versatile connector comfortably accepts cable diameters up to 3.4mm, providing a secure and stable connection. The unique design allows you to adjust the cable outlet of the XLR at a 120-degree angle, offering flexibility and convenience in your audio and video setups.

This connector is not only reliable but also compatible with high-quality bulk cables for Lo-Pro connectors, making it an ideal choice for DIY projects. Furthermore, the standard cap is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22.

The distinguishing green cap makes it easy to identify, setting it apart from other cables and connectors. This affordable connector is designed for professional use in audio and video applications, perfect for connecting equipment like microphones or mixers to other devices.

Cable Techniques XLR Connector Features

  • Low-Profile Right Angle
  • A Shell
  • 120 Degree adjustment swing
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior sound quality with this low-profile, right-angle female XLR connector.
  • Maximize space in tight setups; this XLR adapter's right-angle design keeps cables tidy.
  • Enjoy durable performance with a zinc diecast shell and robust bronze contacts for audio.
  • Customize your setup; the green cap adjusts from 60° to 300° on this XLR connector.
  • Ensure reliable connections; this 3-pin female XLR is rated for 1,000+ operations.
  • Wide compatibility: solder termination and a compact design make this XLR ideal for many cables.

What's in the box:

  • Cable Techniques A-Shell
  • 3-Pin Insert
  • Standard/Green Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
