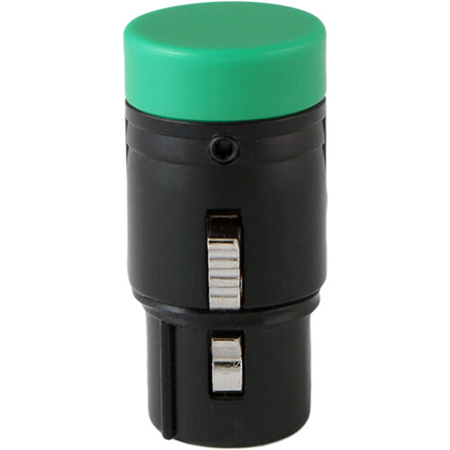

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell, Large/Green Cap

SKU: CTAX3FLG MFR: CT-AX3FL-G
$9.99
Earn VIP Reward Points

Key Features

  • Achieve pro audio connections with this right-angle XLR female connector for tight spaces.
  • Ensure superior sound quality with bronze contacts in this durable XLR cable connector.
  • Customize your setup; the green cap adjusts from 60 to 300 degrees on this XLR adapter.
  • This compact, low-profile XLR connector is perfect for on-stage or studio cable management.
  • Rely on this shielded 3-Pin XLR for robust performance, tested to over 1,000 operations.
  • With a rugged zinc diecast shell, this XLR adapter offers dependable durability and longevity.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the adjustable multi-angle cable exit?

The adjustable multi-angle cable exit allows you to rotate the cable exit 120 degrees to either the 3 o'clock or 9 o'clock position. This provides flexibility for different setups and reduces strain on the cable.

What kind of cables can the large green cap accommodate?

The large green cap is designed to accommodate a range of cable diameters, from 3.8mm to 6.0mm. It's compatible with a variety of popular cables like Mogami W2549, W2534, W2893, W2552, and Canare L-4E6S, among others.

Is this connector suitable for DIY projects?

Yes, this Low Profile Right-Angle XLR Connector is perfectly suited for DIY audio projects. High-quality bulk cable compatible with our Lo-Pro connectors is available by the meter, allowing you to customize your audio setup to your exact specifications.

What environments is this connector recommended for?

This Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell is recommended for a variety of settings, from home studios and live sound environments to professional recording spaces.

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Green
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

When it comes to professional audio connections, the Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell stands out for its exceptional design and versatility. This connector features an innovative adjustable multi-angle cable exit, which can be rotated 120 degrees to either the 3 o'clock or 9 o'clock position, ensuring a perfect fit for a variety of setups and reducing strain on the cable.

The robust A-Shell design is finished in a sleek matte black, complementing any audio equipment while providing a discreet and unobtrusive connection point. The gold-plated pins within the connector ensure a reliable, high-quality signal transfer, which is essential for maintaining the integrity of your audio.

This connector's large green cap is specifically designed to accommodate a range of cable diameters, from 3.8mm to 6.0mm, making it a versatile choice for different cable types. The cap's size and compatibility make it an ideal match for some of the industry's most popular cables, including the super popular Mogami W2549, W2534, W2893, W2552, and Canare L-4E6S, among others.

For those who prefer custom solutions, this Low Profile Right-Angle XLR Connector is perfectly suited for DIY projects. Adorama offers high-quality bulk cable that is compatible with our Lo-Pro connectors, sold by the meter, allowing you to tailor your audio setup to your exact specifications.

Whether you're setting up a home studio, a live sound environment, or a professional recording space, this Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell is engineered to deliver reliable, high-quality connections while offering the flexibility and durability required by audio professionals.

Cable Techniques XLR Connector Features

  • Low-Profile Right Angle
  • A Shell
  • 120 Degree adjustment swing
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pro audio connections with this right-angle XLR female connector for tight spaces.
  • Ensure superior sound quality with bronze contacts in this durable XLR cable connector.
  • Customize your setup; the green cap adjusts from 60 to 300 degrees on this XLR adapter.
  • This compact, low-profile XLR connector is perfect for on-stage or studio cable management.
  • Rely on this shielded 3-Pin XLR for robust performance, tested to over 1,000 operations.
  • With a rugged zinc diecast shell, this XLR adapter offers dependable durability and longevity.

What's in the box:

  • Cable Techniques A-Shell
  • 3-Pin Insert
  • Large/Green Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
