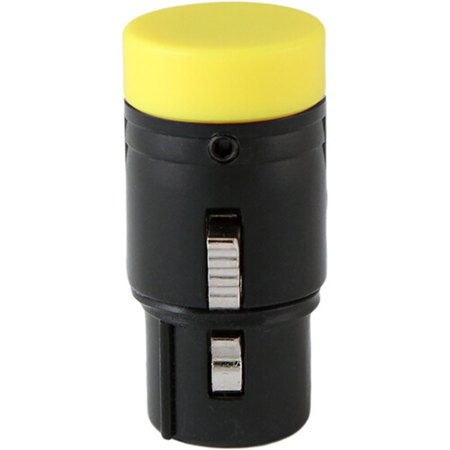

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell, Large/Yellow Cap

SKU: CTAX3FLY MFR: CT-AX3FL-Y
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this low-profile, right-angle female XLR connector.
  • Customize your setup; cap adjusts 60 to 300 degrees for optimal cable management.
  • Built for durability, this XLR connector withstands over 1,000 operations easily.
  • Ensure reliable connections; this 3-Pin female XLR offers a 10A current rating.
  • With excellent shielding, this XLR connector guarantees clean audio in any environment.
  • This compact XLR connector fits tight spaces, with an in-use length of just 0.98 inches.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Yellow
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

For professionals in the audio industry seeking a reliable and versatile solution, the Low-Profile Right-Angle XLR 3-Pin Female Connector with A-Shell is an exceptional choice. This high-quality connector is designed with a unique right-angle structure, making it an ideal fit for tight spaces where standard connectors may not work.

The A-Shell feature allows for an adjustable multi-angle cable exit, providing flexibility with a 120-degree rotation around either the 3 o'clock or 9 o'clock position. This feature enhances the ease of use and adaptability of the connector, ensuring optimal performance in various setups.

The connector is encased in a stylish matte black shell, equipped with gold pins for superior conductivity and signal transmission. This ensures that your audio equipment delivers the best sound quality possible.

One of the standout features of this connector is its large, yellow cap. This cap not only makes it easy to identify and differentiate from other connectors, but it also accepts cables ranging from 3.8mm to 6.0mm in diameter. This versatility allows it to accommodate a wide variety of cables, including the super popular Mogami W2549, W2534, W2893, W2552, and Canare L-4E6S, among many others.

In conclusion, this Low-Profile Right-Angle XLR 3-Pin Female Connector with A-Shell is a durable, high-quality, and reliable choice for any audio professional or enthusiast looking to enhance their setup. Its design and features make it a versatile addition to any audio equipment collection.

Cable Techniques XLR Connector Features

  • Low-Profile Right Angle
  • A Shell
  • 120 Degree adjustment swing
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior sound quality with this low-profile, right-angle female XLR connector.
  • Customize your setup; cap adjusts 60 to 300 degrees for optimal cable management.
  • Built for durability, this XLR connector withstands over 1,000 operations easily.
  • Ensure reliable connections; this 3-Pin female XLR offers a 10A current rating.
  • With excellent shielding, this XLR connector guarantees clean audio in any environment.
  • This compact XLR connector fits tight spaces, with an in-use length of just 0.98 inches.

What's in the box:

  • Cable Techniques A-Shell
  • 3-Pin Insert
  • Large/Yellow Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
