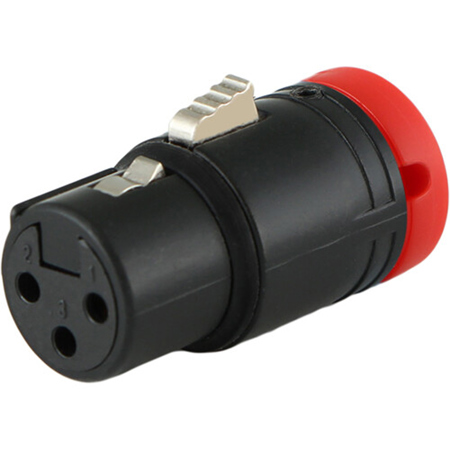

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell, Standard/Red Cap

SKU: CTAX3FR MFR: CT-AX3F-R
$9.99
Earn VIP Reward Points

Key Features

  • Achieve pro-quality audio with this low-profile, right-angle XLR female connector.
  • Customize your setup with adjustable cap angles from 60 to 300 degrees for XLR cables.
  • Ensure durability and reliability with bronze contacts and zinc diecast XLR shell.
  • Experience high-performance connectivity with a 10A current rating in your audio setup.
  • Easily mount your cable with solder termination and a max cable outlet diameter of 3.4mm.
  • Trust in long-lasting performance with a life of over 1,000 operations for XLR connections.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Red
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

How can you enhance your audio setup With the Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell, Standard/Red Cap, you can achieve superior sound quality and connection. This connector features an adjustable multi-angle cable exit, allowing for a 120-degree rotation around either the 3 o'clock or 9 o'clock position. This flexibility ensures optimal cable management and setup customization.

The connector's matte black shell is not only sleek but also durable, ensuring longevity and reliability. Inside, gold pins provide excellent signal transmission, ensuring clear, high-quality audio. The standard cap is designed to accommodate cable diameters up to 3.4mm, providing versatility for various cable types.

One of the standout features of this XLR connector is its compatibility. It pairs seamlessly with high-quality bulk cables sold by the meter, making it an ideal choice for DIY audio projects. Furthermore, it's compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22.

In summary, the Low Profile Right-Angle XLR 3-Pin Female Connector with A-Shell, Standard/Red Cap is a versatile, high-quality component that can significantly enhance your audio setup. Its adjustable design, compatibility with various cables, and superior construction make it a valuable addition to any audio equipment collection.

Cable Techniques XLR Connector Features

  • Low-Profile Right Angle
  • A Shell
  • 120 Degree adjustment swing
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pro-quality audio with this low-profile, right-angle XLR female connector.
  • Customize your setup with adjustable cap angles from 60 to 300 degrees for XLR cables.
  • Ensure durability and reliability with bronze contacts and zinc diecast XLR shell.
  • Experience high-performance connectivity with a 10A current rating in your audio setup.
  • Easily mount your cable with solder termination and a max cable outlet diameter of 3.4mm.
  • Trust in long-lasting performance with a life of over 1,000 operations for XLR connections.

What's in the box:

  • Cable Techniques A-Shell
  • 3-Pin Insert
  • Standard/Red Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
