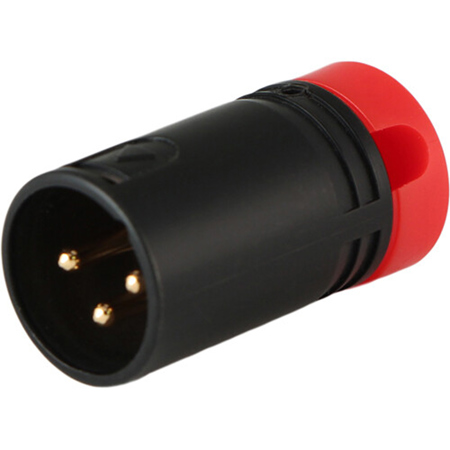

Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with A-Shell, Large/Red Cap

SKU: CTAX3MLR MFR: CT-AX3ML-R
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound with this low-profile, right-angle XLR male connector for custom audio cables.
  • Customize your setup; the adjustable cap angle (30° to 330°) offers flexible cable management options.
  • Built tough with a zinc diecast shell, this durable XLR connector withstands over 1,000 operations.
  • Ensure optimal signal transfer; bronze contacts & solder termination provide a reliable audio connection.
  • Compact design (0.98" in-use length) fits seamlessly into tight spaces, perfect for pro audio setups.
  • Wide thermal range (-58°F to +176°F) makes this XLR connector ideal for diverse recording environments.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Red
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Male

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    30 Degree to 150 Degree and 210 Degree to 330 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.37 x 0.70 x 0.70" (35 x 18 x 18mm) (with Cap)

  • Weight

    0.7 oz (19.8g)

About Cable Techniques XLR Connector

Take your audio setup to the next level with the Low Profile Right-Angle XLR 3-Pin Male Connector with A-Shell, Large/Red Cap. This durable and high-quality connector, crafted by the reputable brand Cable Techniques, is designed to deliver reliable and superior audio connections.

Featuring an adjustable multi-angle cable exit, this connector can be positioned at 120 degrees around either 3 o'clock or 9 o'clock, providing you with the versatility to customize your setup to your specific needs. The matte black shell, complemented by gold pins, adds a stylish touch to your audio equipment, while the distinctive red cap makes it easy to identify among other cables.

This connector is designed to accommodate cables ranging from 3.8mm to 6.0mm, making it a versatile choice for various audio setups. It is compatible with a wide range of cables, including the highly popular Mogami W2549, W2534, W2893, W2552, and Canare L-4E6S, among others.

Whether you're connecting microphones or other audio equipment that requires an XLR connection, this Low Profile Right-Angle XLR 3-Pin Male Connector with A-Shell, Large/Red Cap is a reliable and high-quality choice that will enhance your audio experience.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • A-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior sound with this low-profile, right-angle XLR male connector for custom audio cables.
  • Customize your setup; the adjustable cap angle (30° to 330°) offers flexible cable management options.
  • Built tough with a zinc diecast shell, this durable XLR connector withstands over 1,000 operations.
  • Ensure optimal signal transfer; bronze contacts & solder termination provide a reliable audio connection.
  • Compact design (0.98" in-use length) fits seamlessly into tight spaces, perfect for pro audio setups.
  • Wide thermal range (-58°F to +176°F) makes this XLR connector ideal for diverse recording environments.

What's in the box:

  • Cable Techniques A-Shell
  • 3-Pin Insert
  • Large/Red Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
