Cable Techniques LP R/A XLR 3-Pin Male Connector with A-Shell, Standard/Red Cap
See all Cable Techniques items

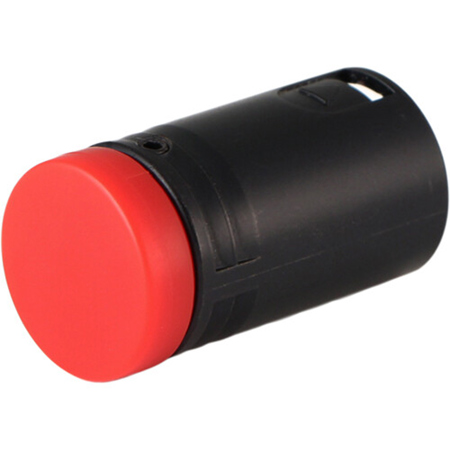

Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with A-Shell, Standard/Red Cap

SKU: CTAX3MR MFR: CT-AX3M-R
Be the first to review this itemAsk a Question
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this low profile, right-angle XLR male connector.
  • Customize your setup; the adjustable cap angles from 30° to 330° on this XLR connector.
  • This durable, zinc diecast shell XLR connector is built to last through 1,000+ operations.
  • Enjoy broad compatibility; solder termination works with a variety of audio cable types.
  • Perfect for tight spaces, this compact XLR connector has an in-use length of just 0.98".
  • Ensure secure connections; set screws and zip-tie included for robust cable management.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the right-angle design on the Low Profile XLR 3-Pin Male Connector?

The right-angle design of this connector is meant to optimize its use in tight spaces and intricate setups. It's particularly useful when space is at a premium or when cables need to be routed in specific directions.

What is the benefit of the adjustable multi-angle cable exit?

The adjustable multi-angle cable exit allows for a 120-degree rotation around either the 3 o'clock or 9 o'clock position. This provides greater flexibility and control over how and where your cables are routed.

Why does the connector have gold pins?

The gold pins on the connector aren't just for aesthetics. Gold is an excellent conductor of electricity, which helps to ensure a superior and reliable connection for your audio and video equipment.

Is this connector compatible with all types of cables?

The standard cap of the connector is designed to accommodate cable diameters up to 3.4mm. It's also compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22.

Who would benefit from using the Low Profile Right-Angle XLR 3-Pin Male Connector?

Anyone looking to create a professional and efficient audio and video setup would benefit from this connector. Its design and features make it an essential tool for both beginners and professionals in the field of audio and video equipment.

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Red
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Male

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    30 Degree to 150 Degree and 210 Degree to 330 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.37 x 0.70 x 0.70" (35 x 18 x 18mm) (with Cap)

  • Weight

    0.7 oz (19.8g)

About Cable Techniques XLR Connector

Before you delve into the world of audio and video equipment, consider the Low Profile Right-Angle XLR 3-Pin Male Connector with A-Shell, Standard/Red Cap. This highly versatile connector is designed with a low-profile right-angle design, making it an ideal choice for tight spaces and intricate setups. The A-Shell feature allows for an adjustable multi-angle cable exit, offering a 120-degree rotation around either the 3 o'clock or 9 o'clock position.

The connector boasts a sleek, matte black shell, complemented by gold pins for a touch of elegance and superior conductivity. The standard cap is designed to accommodate cable diameters up to 3.4mm, providing a secure and reliable connection.

One of the standout features of this XLR 3-pin male connector is its compatibility. The standard cap is designed to work seamlessly with a range of slim cable models. Whether you're using Belden 1804A, Mogami W2901, W3031, W2697, or Sommer Isopod SO-F22, you can trust this connector to deliver a solid connection every time.

In the realm of audio and video equipment, the Low Profile Right-Angle XLR 3-Pin Male Connector with A-Shell, Standard/Red Cap stands out for its versatility, design, and compatibility. It's an essential tool for anyone looking to create a professional and efficient setup.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • A-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve superior sound quality with this low profile, right-angle XLR male connector.
  • Customize your setup; the adjustable cap angles from 30° to 330° on this XLR connector.
  • This durable, zinc diecast shell XLR connector is built to last through 1,000+ operations.
  • Enjoy broad compatibility; solder termination works with a variety of audio cable types.
  • Perfect for tight spaces, this compact XLR connector has an in-use length of just 0.98".
  • Ensure secure connections; set screws and zip-tie included for robust cable management.

What's in the box:

  • Cable Techniques A-Shell
  • 3-Pin Insert
  • Standard/Red Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
