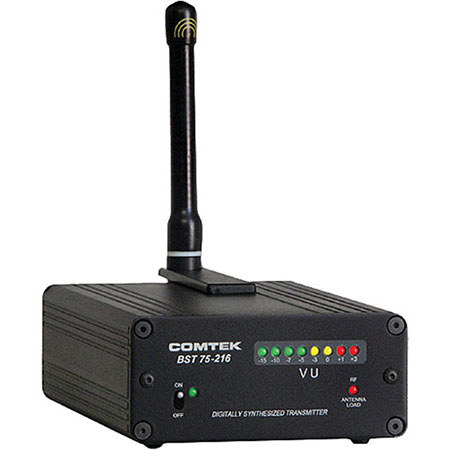

Comtek BST 75-216 CWN Mini Base Station Transmitter with Communication EQ
See all Comtek items

Comtek BST 75-216 CWN Mini Base Station Transmitter with Communication EQ for PR-216 & PR-216 Option 7 Receivers, 216MHz Operating Frequency

SKU: CTBST75216CN
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comtek BST 25-216: Picture 1 regular
Comtek BST 25-216 Carry Case Version Synthesized Base Station Transmitter
$2,240.00$1,768.00
Comtek BST 25-216: Picture 1 regular
Comtek BST 25-216 Rack Mount Version Synthesized Base Station Transmitter
$2,240.00$1,768.00
Comtek : Picture 1 regular

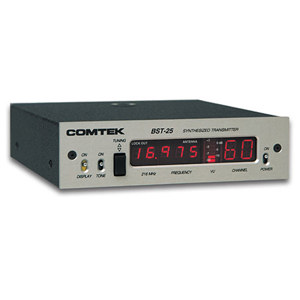

Comtek BST-25 Rack Mount Version Base Station Transmitter
$2,305.00$1,821.00
Comtek BST 75-216 CW: Picture 1 regular

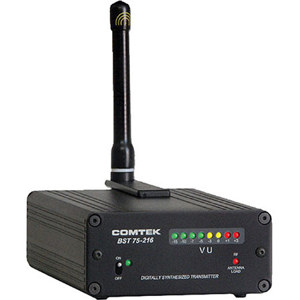

Comtek BST 75-216 CW Synthesized Base Station Transmitter
$964.00$848.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comtek BST 75-216 CWN Specifications

  • Compatibility

    PR-216 & PR-216 Option 7 Receivers

  • Audio Inputs

    Line level balanced input 0 dBm for 80% modulation (+20 dBm maximum, XLR-3F)
    Unbalanced input (+5 dBm maximum) or 2 wire electret microphones with bias voltage for electret microphone (-35 dBV at 5 kOhm) with 1/4" phone jack

  • Connectors

    XLR-3F Combo with 1/4" phone jack
    Barrel type 5.5 x 2.1 mm power jack DC
    BNC type RF output

  • Indicators

    Operation Indicators:
    LED bar-graph VU meter
    LED antenna load and SWR indicator
    LED DC power indicator

  • Antenna

    Short loaded BNC whip antenna
    BNC RF output connector for an external antenna (sold separately)

  • FCC Compliance

    Type certification and type acceptance under FCC Part 95

  • Power Requirements

    12 VDC, 200 mA maximum

  • Frequency Response

    100 Hz to 10 kHz

  • Audio Distortion

    Less than 1% at 80% modulation

  • Gain Control

    Audio: Limited to 20 dB

  • Limiter

    Modulation Limiter: Peak compressor type with high linear overload protection (25 dB)
    Attack time less than 1 minutes, recovery time 10 ms

  • Audio Processing

    Companded and non-companded to accommodate a variety of receivers

  • RF Output Power

    Maximum power output for FCC Part 95 (100 mW)

  • Frequency Stability

    Better than 0.002% digitally synthesized, crystal controlled

  • Frequency Modulation

    10 kHz deviation companded
    5 kHz deviation non-companded

  • Operating Frequency

    216.0125 to 216.9750 MHz (57 channels)
    Custom factory programmed to 10 of 19 available high-fidelity companded channels or may be programmed to 10 of 38 standard non-companded NB channels

  • Harmonic & Spurious Emissions

    Better than 50 dB below carrier

  • Dimensions (W x H x D)

    3.75 x 1.63 x 5.25" (9.53 x 4.14 x 13.34cm)

  • Weight

    17.00 oz (481.94g)

About Comtek BST 75-216 CWN

The Comtek BST 75-216 CWN Mini Base Station Transmitter with Communication EQ is simple to use and features Flash Memory synthesized channel programmability with a manual, 10-channel selectable switch. A multi-function RF indicator detects bad antenna load, RF presence and coaxial cable open condition for quick and easy troubleshooting. To accommodate a variety of receivers, the BST 75-216 Transmitter can operate with both non-companded receivers and companded receivers for higher fidelity sound reproduction. A practical, compact, all-metal enclosure is suitable for permanent rack-mount installations or for standalone portable use.

The BST 75-216 CWN is configured with 5 channels using the wide band compounded channels for use with the PR-216 receiver and 5 channels using the narrow band non-companded channels for use with the Phonak Invisity receivers. Both channel groups use the standard EQ.

Comtek BST 75-216 CWN Features

  • Full Fidelity Frequency Response
  • Perfect for Sound Carts
  • Compact Design
  • Easy Setup and Installation
  • User Selectable RF Output Power Level

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Full Fidelity Frequency Response
  • Perfect for Sound Carts
  • Compact Design
  • Easy Setup and Installation
  • User Selectable RF Output Power Level

What's in the box:

  • Comtek BST 75-216 CWN Mini Base Station Transmitter with Communication EQ
  • C-75 Carrying Case
  • SLW-216-75 Short Load Helical Whip Antenna (216MHz)
  • Antenna Bracket
  • AP-12V1-75 Universal Switching Power Supply (12VDC Output)
  • Comtek 2 Year Warranty
