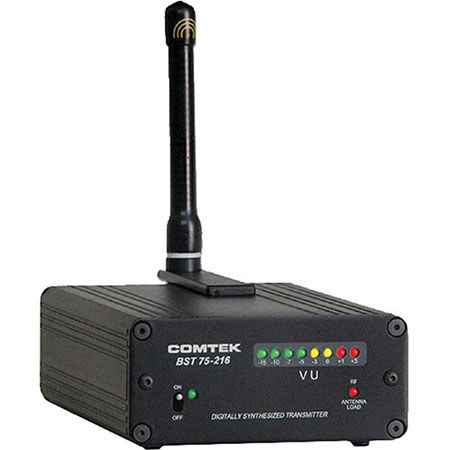

Comtek BST 75-216 CW Synthesized Base Station Transmitter
See all Comtek items

Comtek BST 75-216 CW Synthesized Base Station Transmitter with Companded and Non-Companded Channels for PR-216 & PR-216 Option 7 Receivers

SKU: CTBST75216CW MFR: BST 75-216 CW
(1)Ask a Question
$848.00
$964.00
Save: $116 (12%)
OR
$71/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Comtek wireless transmitter for clear audio.
  • Ensure low latency and reliable performance with our 216 MHz wireless microphone system.
  • Enjoy versatile audio processing with companded/non-companded channels on this transmitter.
  • This durable transmitter has a broad 216.0125 to 216.9750 MHz operating frequency.
  • Easily connect using XLR or 1/4" inputs; ideal for professional audio setups and events.
  • This wireless transmitter offers a stable signal and is FCC Part 95 compliant.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-08-05T08:04:39

Rated 4 out of 5

Very good

Very good very good very good very good

Felipe B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Comtek BST 75-216 CW Specifications

  • Audio Inputs

    1x XLR-3F Balanced Line Input (20 dBm maximum)
    1x 1/4" Mono Plug Input (5 dBm maximum)
    2x Wire Electret Microphone Input (with internal bias voltage)

  • Connectors

    1x XLR/TRS Combo
    1x Barrel Type 0.2 x 0.1" (5.5 x 2.1 mm) DC Power Jack
    1x BNC-Type RF Output

  • Indicators

    Operation Indicators:
    LED bar-graph VU meter
    LED antenna load and SWR indicator
    LED DC power indicator

  • Antenna

    Short loaded BNC whip antenna
    BNC RF output connector for an external antenna (sold separately)

  • FCC Compliance

    Type certification and type acceptance under FCC Part 95

  • Power Requirements

    12 VDC, 200 mA maximum

  • Frequency Response

    100 Hz to 10 kHz

  • Audio Distortion

    Less than 1% at 80% modulation

  • Gain Control

    Audio: Limited to 20 dB

  • Limiter

    Modulation Limiter: Peak compressor type with high linear overload protection (25 dB)
    Attack time less than 1 minutes, recovery time 10 ms

  • Audio Processing

    Companded and non-companded to accommodate a variety of receivers

  • RF Output Power

    Maximum power output for FCC Part 95 (100 mW)

  • Frequency Stability

    Better than 0.002% digitally synthesized, crystal controlled

  • Frequency Modulation

    10 kHz deviation companded
    5 kHz deviation non-companded

  • Operating Frequency

    216.0125 to 216.9750 MHz (57 channels)
    Custom factory programmed to 10 of 19 available high-fidelity companded channels or may be programmed to 10 of 38 standard non-companded NB channels

  • Harmonic & Spurious Emissions

    Better than 50 dB below carrier

  • Dimensions (W x H x D)

    3.75 x 1.63 x 5.25" (9.53 x 4.14 x 13.34cm)

  • Weight

    17.00 oz (481.94g)

About Comtek BST 75-216 CW

The Comtek BST 75-216 CW Synthesized Base Station Transmitter is simple to use and features Flash Memory synthesized channel programmability with a manual, 10-channel selectable switch. A multi-function RF indicator detects bad antenna load, RF presence and coaxial cable open condition for quick and easy troubleshooting. To accommodate a variety of receivers, the BST 75-216 Transmitter can operate with both non-companded receivers and companded receivers for higher fidelity sound reproduction. A practical, compact, all-metal enclosure is suitable for permanent rack-mount installations or for standalone portable use.

The BST 75-216 CW is configured with all 10 channels using the wide band compounded channels with the standard EQ. For use with the PR-216 receiver only.

Comtek BST 75-216 CW Features

  • Full Fidelity Frequency Response
  • Perfect for Sound Carts
  • Compact Design
  • Easy Setup and Installation
  • User Selectable RF Output Power Level

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with this Comtek wireless transmitter for clear audio.
  • Ensure low latency and reliable performance with our 216 MHz wireless microphone system.
  • Enjoy versatile audio processing with companded/non-companded channels on this transmitter.
  • This durable transmitter has a broad 216.0125 to 216.9750 MHz operating frequency.
  • Easily connect using XLR or 1/4" inputs; ideal for professional audio setups and events.
  • This wireless transmitter offers a stable signal and is FCC Part 95 compliant.

What's in the box:

  • Comtek BST 75-216 CW Synthesized Base Station Transmitter with Companded and Non-Companded Channels
  • C-75 Carrying Case
  • SLW-216-75 Short Load Helical Whip Antenna
  • Antenna Bracket
  • AP-12V1-75 Universal Switching Power Supply (12VDC Output)
  • Comtek 2 Year Warranty
