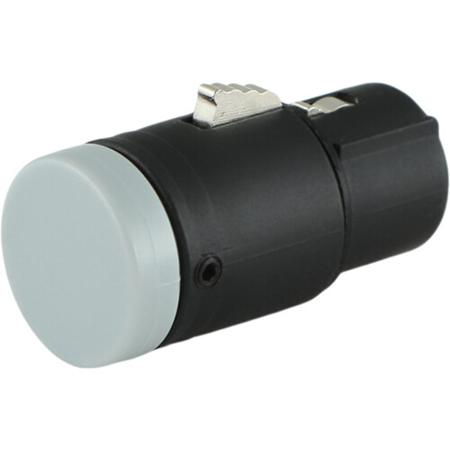

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Standard/Gray Cap

SKU: CTBX3FA MFR: CT-BX3F-A
$9.99
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this low-profile, right-angle female XLR connector.
  • Enjoy superior durability with the zinc diecast shell and bronze contacts of this XLR.
  • Customize your setup with adjustable cap angles from 60 to 300 degrees on this XLR.
  • Ensure reliable signal clarity with gold-plated contacts for optimal audio connections.
  • Experience easy cable management with a compact design and right-angle XLR orientation.
  • This female XLR connector offers broad compatibility, perfect for various audio devices.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Gray
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

Take your audio and video setup to the next level with the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Standard/Gray Cap. This durable and reliable connector, crafted by the reputable brand Cable Techniques, is designed to deliver high-quality sound transmission in professional audio and video applications.

The connector features a versatile, low-profile design that is perfect for use in tight spaces or when you need to keep your cables discreet. Its right-angle design ensures easy and efficient plugging and unplugging, enhancing the user-friendly experience.

The B-Shell of this connector is adjustable, allowing for a multi-angle cable exit of 120 degrees around either the 6 o'clock or 12 o'clock position. This feature provides added flexibility in arranging your equipment and cables. The matte black shell, adorned with gold pins, not only ensures durability but also adds a touch of sophistication to your audio and video gear.

The standard cap of this connector can accommodate cable diameters up to 3.4mm, making it a versatile addition to your equipment. Furthermore, this connector is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22.

In essence, the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Standard/Gray Cap is a versatile, high-quality, and user-friendly solution for your professional audio and video needs.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine sound quality with this low-profile, right-angle female XLR connector.
  • Enjoy superior durability with the zinc diecast shell and bronze contacts of this XLR.
  • Customize your setup with adjustable cap angles from 60 to 300 degrees on this XLR.
  • Ensure reliable signal clarity with gold-plated contacts for optimal audio connections.
  • Experience easy cable management with a compact design and right-angle XLR orientation.
  • This female XLR connector offers broad compatibility, perfect for various audio devices.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Standard/Gray Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
