Cable Techniques LP R/A XLR 3-Pin Female Connector with B-Shell, Large/Green Cap
Cable Techniques XLR Connector: Picture 1 thumbnail
Cable Techniques XLR Connector: Picture 2 thumbnail
Cable Techniques XLR Connector: Picture 3 thumbnail
Cable Techniques XLR Connector: Picture 4 thumbnail
See all Cable Techniques items

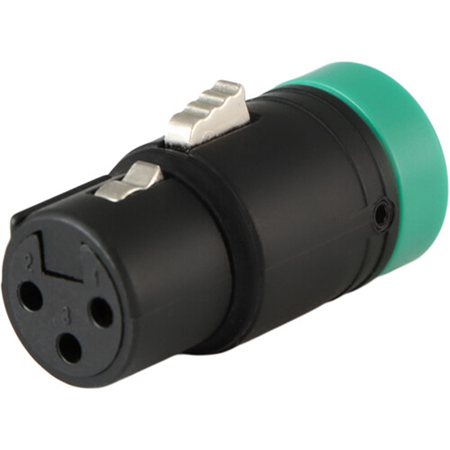

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Large/Green Cap

SKU: CTBX3FLG MFR: CT-BX3FL-G
Be the first to review this itemAsk a Question
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound with this low profile, right-angle female XLR connector.
  • Customize your setup; cap angle adjusts 60 to 300 degrees for ultimate flexibility.
  • Built tough: zinc diecast shell & bronze contacts ensure durability and great sound.
  • This 3-Pin Female XLR is perfect for tight spaces, offering a compact audio solution.
  • Enjoy broad compatibility; solder termination fits cables 0.15 to 0.23" in diameter.
  • Trust in quality: Cable Techniques XLR connectors are rated for over 1,000 operations.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Green
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

Low-Profile Right Angle XLR 3-pin Female Connector, B-Shell = Adjustable Multi-angle cable exit 120 Degree around 6 o'clock or 12 o'clock, matte Black shell with gold pins.

The new Large cap accepts cables from 3.8mm to 6.0mm. You can adjust the cable outlet of the XLR 120 Degree around 6 o'clock or 12 o'clock.

Compatibility: The Large Cap can use the super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S and many more.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve superior sound with this low profile, right-angle female XLR connector.
  • Customize your setup; cap angle adjusts 60 to 300 degrees for ultimate flexibility.
  • Built tough: zinc diecast shell & bronze contacts ensure durability and great sound.
  • This 3-Pin Female XLR is perfect for tight spaces, offering a compact audio solution.
  • Enjoy broad compatibility; solder termination fits cables 0.15 to 0.23" in diameter.
  • Trust in quality: Cable Techniques XLR connectors are rated for over 1,000 operations.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Large/Green Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
