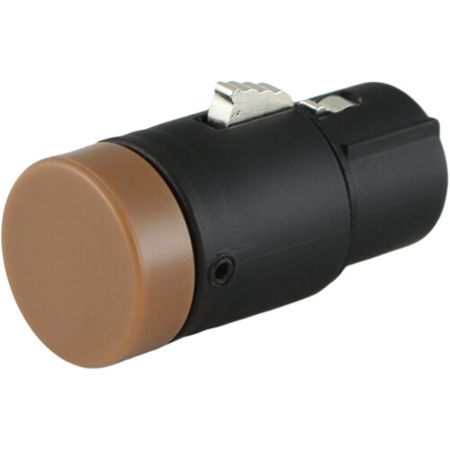

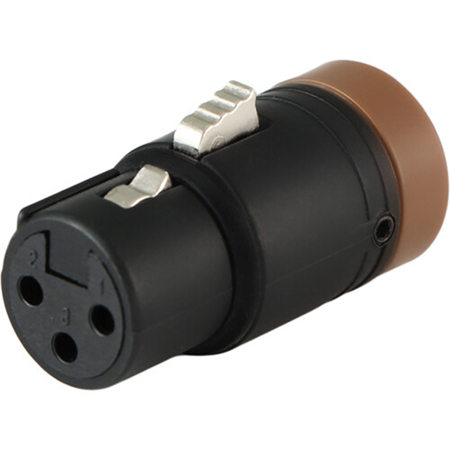

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Large/Brown Cap

SKU: CTBX3FLS MFR: CT-BX3FL-S
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this low-profile, right-angle XLR female connector.
  • Ensure durability with the zinc diecast shell and robust bronze contacts for reliable use.
  • Customize your setup; the adjustable cap angle offers versatile cable management options.
  • Enjoy wide compatibility; this 3-pin female XLR connector is perfect for audio applications.
  • Minimize noise; solder termination ensures a clean, professional, low-noise audio connection.
  • This compact XLR connector's short length is ideal for tight spaces, improving cable management.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Brown
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

An essential tool for audio professionals, the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell and Large/Brown Cap offers a versatile solution for managing your audio equipment. This connector features an adjustable multi-angle cable exit, providing 120-degree rotation around either the 6 o'clock or 12 o'clock position. This flexibility allows for optimal cable management and reduces strain on the connector, ensuring a secure and reliable connection.

The connector's matte black shell is not only sleek but also durable, designed to withstand the rigors of regular use. Inside, gold pins ensure optimal signal transmission for clear, high-quality audio. The connector's large cap is designed to accommodate cables ranging from 3.8mm to 6.0mm in diameter, providing a snug and secure fit.

Furthermore, this XLR 3-Pin Female Connector is compatible with a wide range of popular cables, including the Mogami W2549, W2534, W2893, W2552, and the Canare L-4E6S, among others. This broad compatibility makes it a versatile addition to any audio setup, whether you're a professional sound engineer, a passionate audiophile, or a dedicated hobbyist.

In summary, the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell and Large/Brown Cap is a robust, versatile, and high-quality solution for your audio connection needs.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior sound quality with this low-profile, right-angle XLR female connector.
  • Ensure durability with the zinc diecast shell and robust bronze contacts for reliable use.
  • Customize your setup; the adjustable cap angle offers versatile cable management options.
  • Enjoy wide compatibility; this 3-pin female XLR connector is perfect for audio applications.
  • Minimize noise; solder termination ensures a clean, professional, low-noise audio connection.
  • This compact XLR connector's short length is ideal for tight spaces, improving cable management.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Large/Brown Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
