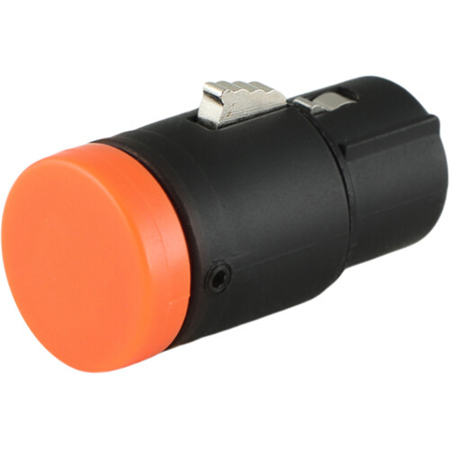

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Standard/Orange Cap

SKU: CTBX3FN MFR: CT-BX3F-N
$9.99
Earn VIP Reward Points

Key Features

  • Achieve top-notch sound quality with this low-profile, right-angle XLR female connector.
  • Enjoy superior durability with the zinc diecast shell and bronze contacts of this XLR.
  • This 3-Pin Female XLR offers versatile compatibility for your audio cable needs.
  • Customize your setup with adjustable cap angles, from 60° to 300°, on this XLR connector.
  • Ensure low noise and reliable connections with gold-plated contacts in this XLR adapter.
  • Perfect for tight spaces: its compact design makes this XLR ideal for on-the-go audio setups.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Orange
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

Overhaul your audio setup with the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, featuring a Standard/Orange Cap. This high-quality connector is designed with a sleek, matte black shell and gold pins, ensuring not only superior performance but also a stylish aesthetic.

The B-Shell of this XLR connector is adjustable, offering a multi-angle cable exit that can be set at 120 degrees around either 6 o'clock or 12 o'clock. This unique feature provides flexibility and customization to your audio setup, allowing for optimal cable management and space utilization.

Designed to accommodate cable diameters up to 3.4mm, the standard cap of this right-angle XLR connector ensures a secure and reliable connection. This feature makes it an ideal choice for professional audio setups, enhancing sound quality and reducing potential signal interference.

Moreover, this XLR 3-pin female connector boasts wide compatibility. The standard cap is designed to work seamlessly with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22. This broad compatibility ensures that you can integrate this connector into your existing setup with ease.

In conclusion, the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell and Standard/Orange Cap is a versatile and high-quality addition to any audio equipment collection, offering superior performance, flexibility, and wide compatibility.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve top-notch sound quality with this low-profile, right-angle XLR female connector.
  • Enjoy superior durability with the zinc diecast shell and bronze contacts of this XLR.
  • This 3-Pin Female XLR offers versatile compatibility for your audio cable needs.
  • Customize your setup with adjustable cap angles, from 60° to 300°, on this XLR connector.
  • Ensure low noise and reliable connections with gold-plated contacts in this XLR adapter.
  • Perfect for tight spaces: its compact design makes this XLR ideal for on-the-go audio setups.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Standard/Orange Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
