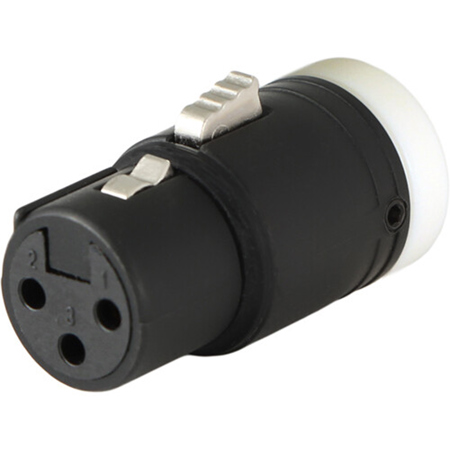

Cable Techniques Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, Standard/White Cap

SKU: CTBX3FW MFR: CT-BX3F-W
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this low profile, right-angle female XLR connector.
  • Customize your setup; this XLR connector's cap angle adjusts from 60 to 300 degrees.
  • Built for durability, this 3-Pin Female Connector withstands over 1,000 operations!
  • Enjoy broad compatibility; this female XLR connector is perfect for various audio cables.
  • Ensure secure connections; set screws made of anodized stainless steel included.
  • This shielded XLR connector maintains signal integrity, reducing noise and interference.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell?

This connector is designed to connect a low-profile XLR 3-pin female connector with a B-shell to any device equipped with an XLR input. It's typically used in audio applications, such as connecting a microphone to a mixer or a soundboard.

What makes this connector user-friendly?

The connector features an adjustable multi-angle cable exit that can be set to 120 degrees around either 6 o'clock or 12 o'clock. This provides flexibility for your setup. Additionally, its standard cap is designed to accept cable diameters up to 3.4mm, accommodating a wide range of cables.

What cable models is this connector compatible with?

The standard cap is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22.

What is the quality of the connector's construction?

The connector is housed in a high-quality matte black shell with gold pins, indicative of its superior construction and durability.

Who is the manufacturer of this connector?

This connector is designed by Cable Techniques, a brand renowned for its exceptional audio and video cables.

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: White
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Female

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.45 x 0.74 x 0.74" (37 x 19 x 19mm) (with Cap)

  • Weight

    1.2 oz (34g)

About Cable Techniques XLR Connector

Experience the superior performance of the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell, a product that exemplifies durability, high-quality, and reliability. This innovative and user-friendly connector is designed by Cable Techniques, a brand renowned for its exceptional audio and video cables.

This connector is not just a simple accessory, but a vital tool for audio applications. It is specifically designed to connect a low-profile XLR 3-pin female connector with a B-shell to any device equipped with an XLR input. Whether you're connecting a microphone to a mixer or a soundboard, this connector ensures a seamless and efficient connection.

The connector features an adjustable multi-angle cable exit that can be set to 120 degrees around either 6 o'clock or 12 o'clock, providing flexibility for your setup. Its matte black shell houses gold pins, a testament to its high-quality construction. The standard cap is designed to accept cable diameters up to 3.4mm, accommodating a wide range of cables.

In terms of compatibility, this connector is a versatile choice. The standard cap is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22. This makes it a versatile and adaptable solution for a multitude of audio applications.

In conclusion, the Low Profile Right-Angle XLR 3-Pin Female Connector with B-Shell is a reliable, high-quality, and user-friendly choice for all your audio connection needs.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior sound quality with this low profile, right-angle female XLR connector.
  • Customize your setup; this XLR connector's cap angle adjusts from 60 to 300 degrees.
  • Built for durability, this 3-Pin Female Connector withstands over 1,000 operations!
  • Enjoy broad compatibility; this female XLR connector is perfect for various audio cables.
  • Ensure secure connections; set screws made of anodized stainless steel included.
  • This shielded XLR connector maintains signal integrity, reducing noise and interference.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Standard/White Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
