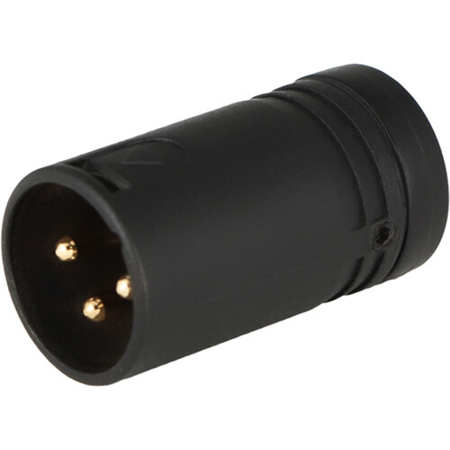

Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell, Standard/Black Cap

SKU: CTBX3MK MFR: CT-BX3M-K
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior audio signal quality with this Cable Techniques XLR male connector.
  • Customize your setup with the adjustable cap angle, offering flexibility from 60 to 300 degrees.
  • Ensure long-lasting durability with bronze contacts and an anodized stainless steel set screw.
  • Experience reliable performance with a connector rated for over 1,000 operations for audio use.
  • Optimize your cable management with this low-profile, right-angle XLR connector design.
  • Easily solder your connections with this 3-Pin Male XLR, perfect for custom audio cables.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Black
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Male

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.37 x 0.70 x 0.70" (35 x 18 x 18mm) (with Cap)

  • Weight

    0.7 oz (19.8g)

About Cable Techniques XLR Connector

If you're in search of a reliable and high-quality solution for your audio connection needs, look no further than the Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell, Standard/Black Cap. This sturdy and professional-grade connector, produced by the reputable brand Cable Techniques, is designed with a low-profile right-angle, making it the perfect choice for situations where space is at a premium or when the cable needs to be discreetly positioned.

This durable connector features a B-Shell that allows for an adjustable multi-angle cable exit, providing 120-degree rotation around either the 6 o'clock or 12 o'clock position. Its matte black shell is complemented by gold pins, ensuring not only a sleek aesthetic but also optimal signal transmission for your audio equipment.

The standard cap of this XLR 3-pin male connector is designed to accommodate cable diameters up to 3.4mm, providing a secure and stable connection. Furthermore, its compatibility extends to popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22, making it a versatile addition to any audio setup.

Whether you're connecting a microphone, guitar, or other audio equipment to a device with an XLR input like a mixer or soundboard, this Low Profile Right-Angle XLR 3-Pin Male Connector from Cable Techniques, available at Adorama, is your go-to choice for a seamless and high-quality audio connection.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior audio signal quality with this Cable Techniques XLR male connector.
  • Customize your setup with the adjustable cap angle, offering flexibility from 60 to 300 degrees.
  • Ensure long-lasting durability with bronze contacts and an anodized stainless steel set screw.
  • Experience reliable performance with a connector rated for over 1,000 operations for audio use.
  • Optimize your cable management with this low-profile, right-angle XLR connector design.
  • Easily solder your connections with this 3-Pin Male XLR, perfect for custom audio cables.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Standard/Black Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
