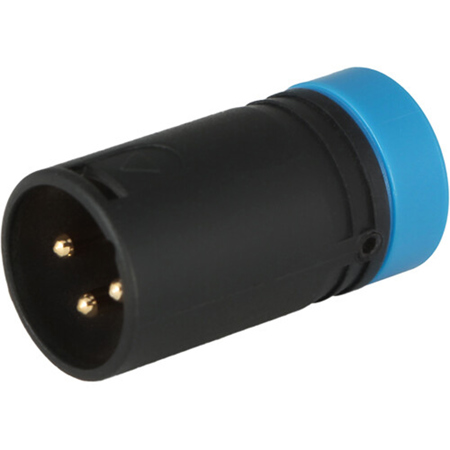

Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell, Large/Blue Cap

SKU: CTBX3MLB MFR: CT-BX3ML-B
$9.99
Earn VIP Reward Points

Key Features

  • Achieve pro audio connections with this durable, right-angle XLR male connector.
  • Customize your setup with the adjustable cap, offering versatile angle options (60° to 300°).
  • Ensure reliable sound quality with bronze contacts and robust zinc diecast XLR shell.
  • Perfect for tight spaces, the low-profile design keeps your audio cables neatly organized.
  • Built to last: This XLR connector endures over 1,000 operations with ease!
  • Wide thermal range (-58°F to 176°F) makes this audio connector ideal for any environment.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?BRIAN P : easy to create custom cables with these connectors

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Blue
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Male

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.37 x 0.70 x 0.70" (35 x 18 x 18mm) (with Cap)

  • Weight

    0.7 oz (19.8g)

About Cable Techniques XLR Connector

Under the banner of Cable Techniques, a brand renowned for its high-quality audio and video cables, comes the Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell and Large/Blue Cap. This durable and reliable connector is designed to meet the needs of professional audio and video applications, making it an ideal choice for connecting microphones or other audio devices to mixers or soundboards.

The innovative low-profile design of this connector is perfect for situations where space is limited, such as in live sound setups or recording studios. Its right-angle design not only adds a stylish touch but also simplifies the plugging and unplugging process, especially in tight spaces or when devices are mounted on walls or other surfaces.

The connector features an adjustable multi-angle cable exit that can be set at 120 degrees around either the 6 o'clock or 12 o'clock position. This flexibility allows for optimal cable management and ease of use. The matte black B-shell and large blue cap not only provide a sleek aesthetic but also offer additional durability and protection for the connector, ensuring reliable performance even in the most demanding environments.

This connector is compatible with a wide range of cables, including the super popular Mogami W2549, W2534, W2893, W2552, and Canare L-4E6S, among many others. The large cap can accommodate cables from 3.8mm to 6.0mm in diameter, providing versatility for various audio setups.

In conclusion, the Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell and Large/Blue Cap is a testament to Cable Techniques' commitment to producing innovative, high-quality, and reliable audio and video cables.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pro audio connections with this durable, right-angle XLR male connector.
  • Customize your setup with the adjustable cap, offering versatile angle options (60° to 300°).
  • Ensure reliable sound quality with bronze contacts and robust zinc diecast XLR shell.
  • Perfect for tight spaces, the low-profile design keeps your audio cables neatly organized.
  • Built to last: This XLR connector endures over 1,000 operations with ease!
  • Wide thermal range (-58°F to 176°F) makes this audio connector ideal for any environment.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Large/Blue Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
