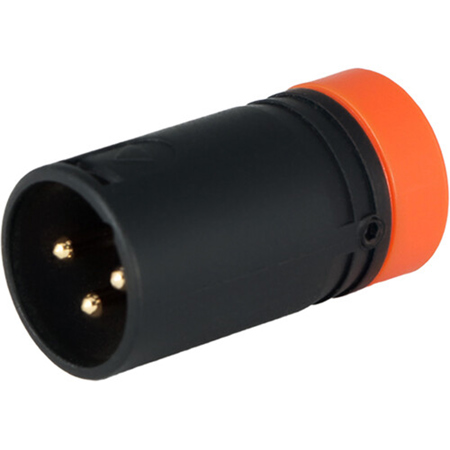

Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell, Large/Orange Cap

SKU: CTBX3MLN MFR: CT-BX3ML-N
$9.99
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this low profile, right-angle 3-Pin Male XLR connector.
  • Customize your setup; this XLR connector's cap angle adjusts from 60 to 300 degrees.
  • Built for durability, this Cable Techniques XLR connector withstands over 1,000 operations.
  • Enjoy broad compatibility; this male XLR connector is perfect for various audio cable setups.
  • Shield your audio; features a robust zinc diecast shell for superior signal protection.
  • Simplify cable management; its compact design fits in tight spaces with ease for cleaner audio.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the Low Profile Right-Angle XLR 3-Pin Male Connector stand out?

This connector stands out due to its low-profile design, which is ideal for tight spaces or for discreet cable placement. Additionally, its right-angle design allows for easy plugging and unplugging of the cable, making it versatile for various audio and video applications.

What is the purpose of the adjustable multi-angle cable exit?

The adjustable multi-angle cable exit allows you to adjust the cable outlet of the XLR 120 degrees around either 6 o'clock or 12 o'clock. This provides flexibility based on your setup needs.

Is this connector compatible with other cables?

Yes, the large cap of this connector is compatible with popular cables such as Mogami W2549, W2534, W2893, W2552, Canare L-4E6S, and many more.

What are the potential uses for this connector?

This connector is designed for professional audio and video applications. It is suitable for use in a variety of settings, including live performances, recording studios, and television production.

Who is the manufacturer of this connector?

This connector is designed by Cable Techniques, a reputable brand known for producing high-quality audio and video cables.

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: Orange
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Male

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.15 to 0.23" (3.8 to 6mm)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.37 x 0.70 x 0.70" (35 x 18 x 18mm) (with Cap)

  • Weight

    0.7 oz (19.8g)

About Cable Techniques XLR Connector

Before you settle for any connector, consider the Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell, Large/Orange Cap. This high-quality, durable connector is designed by Cable Techniques, a brand renowned for its reliable audio and video cables.

The connector features a low-profile design, making it an ideal choice for tight spaces or situations where the cable needs to be discreet. Its right-angle design ensures easy plugging and unplugging, enhancing its versatility for various audio and video applications.

This connector is not just about functionality; it also boasts an aesthetic appeal with its matte black shell and gold pins. The large cap, accepting cables from 3.8mm to 6.0mm, is designed in a striking orange hue, adding a touch of color to your equipment.

One of the standout features of this connector is its adjustable multi-angle cable exit. You can adjust the cable outlet of the XLR 120 degrees around either 6 o'clock or 12 o'clock, providing you with the flexibility you need for your setup.

Compatibility is key when choosing a connector, and this model doesn't disappoint. The large cap is compatible with the super popular Mogami W2549, W2534, W2893, W2552, Canare L-4E6S, and many more, making it a versatile addition to your audio and video equipment.

Whether you're setting up for a live performance, working in a recording studio, or involved in television production, this reliable, affordable XLR 3-pin male connector is designed to meet your professional audio and video needs.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve pristine sound quality with this low profile, right-angle 3-Pin Male XLR connector.
  • Customize your setup; this XLR connector's cap angle adjusts from 60 to 300 degrees.
  • Built for durability, this Cable Techniques XLR connector withstands over 1,000 operations.
  • Enjoy broad compatibility; this male XLR connector is perfect for various audio cable setups.
  • Shield your audio; features a robust zinc diecast shell for superior signal protection.
  • Simplify cable management; its compact design fits in tight spaces with ease for cleaner audio.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Large/Orange Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
