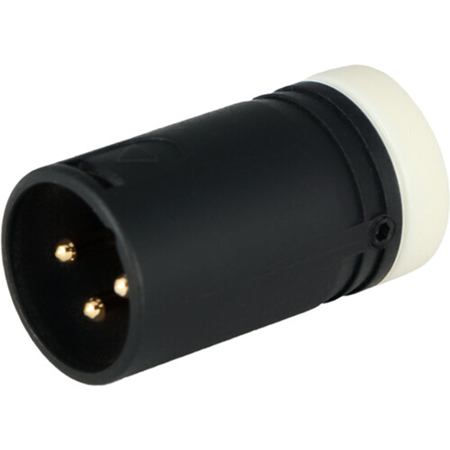

Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell, Standard/White Cap

SKU: CTBX3MW MFR: CT-BX3M-W
$9.99
Earn VIP Reward Points

Key Features

  • Achieve superior sound quality with this low profile, right-angle 3-Pin Male XLR connector.
  • Maximize space in tight setups; this XLR connector's right-angle design keeps cables tidy.
  • Enjoy robust durability with the zinc diecast shell, built to withstand over 1,000 operations.
  • Customize your setup; the white cap adjusts from 60 to 300 degrees for versatile use cases.
  • Ensure reliable connectivity; solder termination provides a secure, long-lasting audio connection.
  • Wide compatibility: Ideal for creating custom audio cables with a max 0.13" cable outlet diameter.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the right-angle design of this XLR connector?

The right-angle design of the Cable Techniques Low Profile XLR 3-Pin Male Connector is intended to facilitate connection to devices in tight spaces, allowing for a seamless and organized setup.

What does the adjustable multi-angle cable exit feature mean?

The adjustable multi-angle cable exit allows you to rotate the cable outlet 120 degrees around either the 6 o'clock or 12 o'clock position. This provides flexibility for a clean and customized cable arrangement.

What cable models is this XLR connector compatible with?

This XLR connector is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22.

What is the maximum cable diameter that the standard cap can accept?

The standard white cap of this XLR connector can accept cable diameters up to 3.4mm.

Who is the manufacturer of this XLR connector?

This Low Profile Right-Angle XLR 3-Pin Male Connector is manufactured by Cable Techniques, a reputable brand known for producing high-quality audio and video cables.

Reviews about this item

Review Summary

Cable Techniques XLR Connector Specifications

  • Color

    Cap: White
    Shell: Black

  • Material

    Contact: Bronze
    Set Screw: Anodized Stainless Steel
    Plastic Cap: Molded ABS thermoplastic

  • Category

    XLR

  • Mounting Style

    Cable Mount

  • Pins

    3

  • Gender

    Male

  • Termination Style

    Solder

  • RoHS

    Yes

  • Cable Outlet Diameter

    0.12 - 0.13" (3.2 - 3.4mm) (Max)

  • Shell

    Zinc Diecast

  • Voltage Rating

    50V

  • Current Rating

    10A

  • In-Use Length

    0.98" (25mm) exposed lengthin-use

  • Set Screw Hex Size

    0.059" (1.5mm)

  • Cap Angle Adjust

    60 Degree to 120 Degree and 240 Degree to 300 Degree

  • Life

    >1,000 operations

  • Thermal Range

    -58 Degree F to +176 Degree F (-50 Degree C to + 80 Degree C)

  • Dimensions

    1.37 x 0.70 x 0.70" (35 x 18 x 18mm) (with Cap)

  • Weight

    0.7 oz (19.8g)

About Cable Techniques XLR Connector

Let the Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell and Standard White Cap be your go-to solution for connecting your audio equipment. This durable and high-quality connector is designed by Cable Techniques, a brand renowned for its reliable audio and video cables.

Featuring a versatile right-angle design, this XLR connector is perfect for tight spaces, allowing for seamless connection to devices with an XLR input such as mixers or soundboards. Its low-profile design ensures minimal intrusion, making it an ideal choice for professional audio setups.

The B-Shell of this connector offers an adjustable multi-angle cable exit, which can be rotated 120 degrees around either the 6 o'clock or 12 o'clock position. This unique feature provides you with the flexibility to adjust the cable outlet as per your requirements, ensuring a neat and organized setup.

The connector's matte black shell is complemented by gold pins, adding a touch of elegance while ensuring optimal signal transmission. The standard white cap is designed to accept cable diameters up to 3.4mm, making it compatible with a wide range of cables.

Moreover, this XLR 3-pin male connector is compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22. This compatibility further enhances its versatility, making it a valuable addition to your audio equipment collection.

In conclusion, the Cable Techniques Low Profile Right-Angle XLR 3-Pin Male Connector with B-Shell and Standard White Cap combines affordability, durability, and high-quality performance, making it a reliable choice for all your audio connection needs.

Cable Techniques XLR Connector Features

  • Low Profile Right Angle
  • B-Shell
  • Black shell, Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve superior sound quality with this low profile, right-angle 3-Pin Male XLR connector.
  • Maximize space in tight setups; this XLR connector's right-angle design keeps cables tidy.
  • Enjoy robust durability with the zinc diecast shell, built to withstand over 1,000 operations.
  • Customize your setup; the white cap adjusts from 60 to 300 degrees for versatile use cases.
  • Ensure reliable connectivity; solder termination provides a secure, long-lasting audio connection.
  • Wide compatibility: Ideal for creating custom audio cables with a max 0.13" cable outlet diameter.

What's in the box:

  • Cable Techniques B-Shell
  • 3-Pin Insert
  • Standard/White Cap
  • 2x Set Screws
  • Zip-Tie
  • Cable Techniques 1 Year Limited Warranty
