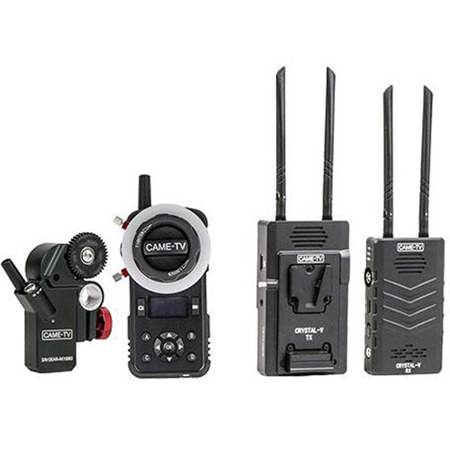

Came-TV Crystal-V Transmission System and CAME-ASTRAL Wireless Follow Focus Combo

SKU: CTCRYSASTRAL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Came-TV Crystal-V Specifications

Crystal V: Transmitter

Crystal V: Transmitter

Jump to...
  • Frequency

    5.180 GHZ

  • Antenna

    4DB Blade Dual Antenna

  • Network Bandwidth

    10 MHz

  • Power Interface

    DC2.1
    7-24V

  • SDI Input

    SDI Input x1

  • HDMI Output

    HDMI IN x1
    Support 2160P@30(Max)

  • SDI Loop out

    1080P@60/1080P@50/720P60/720P@50

  • USB port

    Output DC voltage 5V-2A

  • Input Branch (Max)

    SDI&HDMI input simultaneously

  • Battery

    Support V-mount battery(Support NP battery with adapter plate)

  • Working Current

    12V 510mA@6.12W

  • Power Led

    Red

  • Network Led

    Yellow

  • Video Led

    Blue

  • Working Temperature

    14 - 149 Degree F (-10 - 65 Degree)

  • Battery Info

    required, not included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    -

  • Dimensions

    3.15 x 5.5" (8 x 14cm)

  • Weight

    12.34 oz (350g)

Crystal V: Receiver

Jump to...
  • SDI Input

    SDI Output x1 support format:
    1080P@60/1080P@50/720P@60/720@P50

  • HDMI Output

    HDMI Output x1 support format:
    2160P@30/1440P@30/1080P@60
    1080I@60/1080P@50/1080I@50/1080P30
    1080P25/720P60/720P50/576P50/480P60

  • Channel Option

    Short press about 1S to switch HDMI
    SDI
    HDMI&SDI
    3 different Channels

  • Input Branch (Max)

    SDI&HDMI output simultaneously

  • Battery

    Support NP battery

  • Working Current

    12V 550mA@6.6W

  • Dimensions

    2.7 x 4.9" (7 x 12.5cm)

  • Weight

    8.46 oz (240g)

Crystal V: General

Jump to...
  • Distance

    1640' (500m)

Astral: General

Jump to...
  • Working frequency

    2.415-2.473 GHz

  • Communication distance

    100 m (outdoor, no obstruction)

  • Transmit power

    0 dBm

  • Working temperature

    -4 to 131 Degree F (-20 to 55 Degree C)

Astral: Motor

Jump to...
  • Max torque

    0.50 Nm

  • Max run speed

    250 rpm

  • Working quiescent current

    70 mA (@12 V)

  • Stall current

    1.5 A (@12 V)

  • Working voltage

    12-18 V

  • Noise

    <25 dB (@100 rpm)

  • Gear modulus

    0.8

  • Number of gear

    40

  • Dimensions

    3.93 x 3.34 x 1.25" (100 x 85 x 32mm)

  • Weight

    7.05 oz (200g)

Astral: Controller

Jump to...
  • Battery type

    LIPO

  • Battery voltage

    3.7 V

  • Battery capacity

    1000 mAh

  • Battery power

    3.70 Wh

  • Dimensions

    5.51 x 2.63 x 2.28" (140 x 67 x 58mm)

  • Weight

    8.81 oz (250g)

  • UPC Code

    614993191593

About Came-TV Crystal-V

ASTRAL

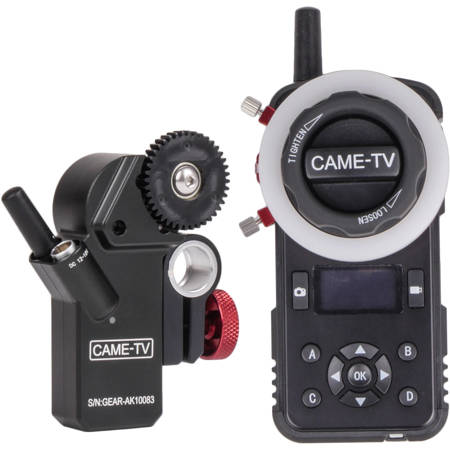

Use the Astral 2.4 GHz Wireless Follow Focus System from CAME-TV to wirelessly control the focus, iris, or zoom of most DSLR, mirrorless, or cine-style lenses. The core of the system is the pairing of the focus control motor and the focus handwheel. The units can connect to each other from 1640' away using a 2.4 GHz wireless signal. The motor can be mounted using its integrated 15mm rod clamp, and the focus wheel controller can be mounted using its 1/4"-20 thread.

The controller features a built-in marking disk and an OLED display that provides battery level, connection, calibration, travel, and memory information, and its menus can be navigated using the buttons on the controller. The controller and motor also support run/stop and shutter functions, as well as setting hard A/B/C/D limits for more control over your camera and lens. It also features a loop to attach the controller to a strap or lanyard.

The motor features an 0.8 MOD gear and can operate at a high-torque, 0.5Nm speed at a maximum 250 rpm. It has a mini-USB port that allows you to connect a camera for run/stop remote control or update firmware with a separately available cable. It is calibrated by a simple automatic process that can be saved to memory. The handwheel is powered by a built-in 1000mAh LiPo battery that lasts up to 8 hours on a full charge, and the motor is powered by your camera or external battery via the included D-Tap to 6-pin LEMO-type cable.

Came-TV Crystal-V Features

  • Crystal V Features
  • IOS, Android App monitor
  • 500 meters distance (1,640')
  • Transmitter Features
  • 1. Support HDMI in and SDI in. SDI loop out, USB 5V output
  • 2. V-mount battery can be used. It can be mounted to V-mount plate, power for both transmitter and camera. optional NP battery plate
  • Receiver Features
  • HDMI Out, SDI Out
  • Astral Features
  • 100m Communication distance using a 2.4 GHz wireless signal
  • Motor features an 0.8 MOD gear and can operate at a high-torque, 0.5Nm speed at a maximum 250 rpm
  • Handwheel is powered by a built-in 1000mAh LiPo battery that lasts up to 8 hours on a full charge

Key Features

  • Crystal V Highlights
  • IOS, Android App monitor
  • 500 meters distance (1,640')
  • HDMI Out, SDI Out
  • Astral Highlights
  • 100m Communication distance using a 2.4 GHz wireless signal

What's in the box:

  • 1x Crystal-V Transmitter
  • 1x Crystal-V Receiver
  • 4x Antenna
  • 1x 1/4 Screw
  • 1x Cold shoe
  • 1x NP battery plate
  • 1x ASTRAL 2.4 GHz High-Torque Wireless Follow Focus
  • 1x Camera Controller
  • 1x D-Tap to 6-Pin LEMO-Type Cable
  • Came-TV 1 Year Limited Warranty
