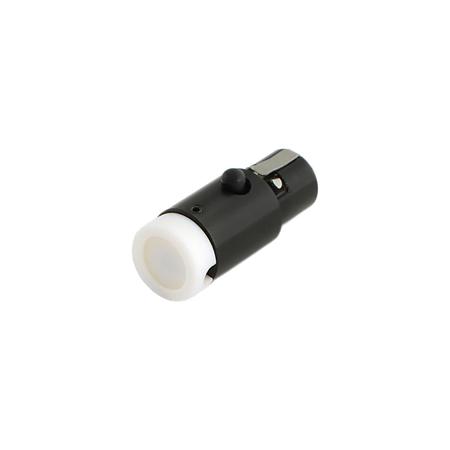

LPS Low-Profile TA5F Mini XLR, 5-pin F Connec, Adj. Side Cable-Exit - White Caps
See all Cable Techniques items

LPS Low-Profile TA5F Mini XLR, 5-pin F Connec, Adj. Side Cable-Exit - White Caps

SKU: CTLPSTA5W MFR: CT-LPS-TA5-W
Be the first to review this itemAsk a Question
$9.95
Earn VIP Reward Points

Key Features

  • Get a secure, low-profile connection with this TA5F Mini XLR female audio connector.
  • Enjoy adjustable side cable-exit for tidy setups, perfect for on-stage audio rigs.
  • Achieve pristine sound quality thanks to robust construction and reliable connections.
  • Durable build ensures this mini XLR connector withstands frequent use in pro audio.
  • Right Angle boot design minimizes cable strain, extending the life of your audio cables.
  • Compatible with various devices, this TA5 connector is ideal for custom audio solutions.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Protection
Q&A

Questions & Answers

FAQ

What devices is the LPS Series Low-Profile TA5F 'Mini XLR' 5-pin Female Connector compatible with?

This connector is compatible with a range of devices, including Lectrosonics SRc5P/SRb5P Receivers, Zaxcom Nomad, Zax-Max, DEVA-24, Zaxcom QRX wireless receiver outputs, and Wisycom Receivers with Top-Feed. It's also suitable for connecting cables and Lavalier microphones to Lectrosonics transmitters like the SMV, SMQV, SMWB, and SMDWB.

What is the maximum cable diameter that the LPS Series Low-Profile TA5F 'Mini XLR' 5-pin Female Connector can accept?

The LPS Low-Profile TA5F Connector can accept cable diameters of up to 3.0mm.

Can the outlet orientation of the LPS Series Low-Profile TA5F 'Mini XLR' 5-pin Female Connector be adjusted?

Yes, the outlet's orientation can be customized to either the left or right, providing a 60° adjustment range for maximum flexibility in cable management.

What are the color options available for the LPS Series Low-Profile TA5F 'Mini XLR' 5-pin Female Connector?

This connector is available with a selection of 10 vibrant color caps for easy identification. Alternatively, it can be color-coded with a sleek black cap complemented by our Color Polydomes for a more subtle appearance.

What are the key specifications of the LPS Series Low-Profile TA5F 'Mini XLR' 5-pin Female Connector?

Key specifications include a 5-Pin configuration, angle adjustability from 60° to 120° and 240° to 300°, a lightweight design at just 0.4 oz, compact dimensions of 10mm x 25mm, a durable black shell, and gold contacts for reliable, high-quality signal transmission.

Reviews about this item

Review Summary

About LPS Low-Profile TA5F Mini XLR, 5-pin F Connec, Adj. Side Cable-Exit -

LPS Series Low-Profile TA5F "Mini XLR" 5-pin Female Connector, Adjustable Left or Right 90½ Side-exit, use with gear like Lectrosonics SRc5P/SRb5P Receivers outs, Zaxcom Nomand, Zax-Max, DEVA-24 and Zaxcom QRX wireless receiver outs and Wisycom Receivers with Top-Feed and more. Also a great option for cables and Lavalier microphones into Lectrosonics transmitters like SMV, SMQV, SMWB and SMDWB.

Using the same concept as our LoPro XLR connectors, mini set-screws lock down the color cap securely and allow for degree of outlet adjustment. The outlet can be set to either Left or Right with 60½ adjustment range for maximum flexibility.

Accepts cable diameters up to 3.0mm. Available with a choice of 10 color caps or can be color-coded with a Black cap and our Color Polydomes. Compatible with our high-quality CT-RAWCB-284 and CT-RAWCB-234 bulk cable sold by the meter for DIY projects. Also compatible with popular slim cable models such as Belden 1804A and Mogami W2929.

Specifications
• Cable Outlet: up to 3.0mm
• 5-Pin
• Angle Adjust: 60½ to 120½ and 240½ to 300½
• Weight: 0.4 oz
• Dimensions: 10mm x 25mm
• Black shell
• Gold Contacts

Warranty Information

This product has a limited warranty of 12 months.
