Came-TV 5.5" 4K HDMI IPS Field Monitor with Tilt Arm, 1280x720

SKU: CTMTS55

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Came-TV MT-S55 Specifications

  • Screen Size

    5.5" IPS

  • Resolution

    1280 x 720 pixels

  • Pixel Pitch (H x W)

    0.0945 x 0.0315mm

  • Aspect Ratio

    16:10

  • Brightness

    500cd/sq. m

  • Contrast Ratio

    1000:1

  • Backlight

    LED

  • Viewing Angle

    80 Degree/80 Degree (L/R) 80 Degree/80 Degree(U/D)

  • Input

    1x HDMI

  • Output

    1x HDMI
    1x DC Output

  • Audio

    Stereo Headphone

  • HDMI Input/Output Support Format

    480i/576i/480p/576p
    1080i (60/59.94/50)
    7720p (60/59.94/50/30/29/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
    4K UHD 3840 2160p (30/29.97/25/24/23.98Hz), 4096 2160p (24Hz)

  • Input Voltage

    DC7-24V

  • Power Consumption

    9W

  • Power Connector

    DC

  • Working Temperature

    -4 Degree to 131 Degree F (-20 Degree to 55 Degree C)

  • Storage Temperature

    -22 Degree to 149 Degree F (-30 Degree to 65 Degree C)

  • Install Way

    1/4"-20 Thread

  • Dimensions (L x H x D)

    5.60 x 3.43 x 1.08" (142 x 87.2 x 27.5mm)

  • Weight

    6.17 oz (175g)

  • UPC Code

    614993190947

About Came-TV MT-S55

The Came-TV 5.5 inch Field Monitor uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video. The MT-S55 has a wide viewing angle so that everyone on set can view the action.

The monitor supports ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology so that the image is clearly presented, the color is extremely natural to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

The menu controls are intuitive and easy to use. At the top of the monitor, there are three custom function buttons that you can set as common functions; press "<" directly to decrease the volume; press ">" directly to increase the volume. The monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

The MT-S55 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

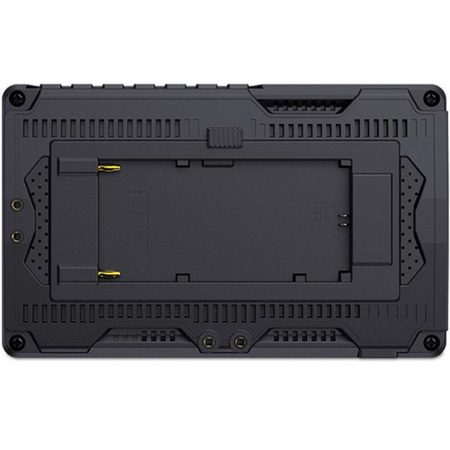

Flexible Dual-purpose Battery Plate provides compatibility with Sony F970 and Canon LP-E6 lithium batteries in one battery plate. Providing long-time working conditions for cameraman while filming.

Included is a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

Came-TV MT-S55 Features

  • Brightness Histogram
  • Embedded Audio
  • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure (1-100IRE adjustable)
  • Check Field (Red, Green, Blue, Mono)
  • Scan Mode (Under Scan, Over Scan)
  • Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Center Marker
  • Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
  • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Color Temperature Adjustment
  • Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
  • Zoom (4X, 9X, 16X)
  • Aspect Ratio
  • Pixel to Pixel
  • Zoom All
  • U/D Zoom

Key Features

  • Brightness Histogram
  • Embedded Audio
  • False Colors
  • Zebra Exposure (1-100IRE adjustable)
  • Check Field (Red, Green, Blue, Mono)
  • Scan Mode (Under Scan, Over Scan)

What's in the box:

  • 5.5 " 4K HDMI IPS Field Monitor with Tilt Arm
  • Came-TV 1 Year Limited Warranty
