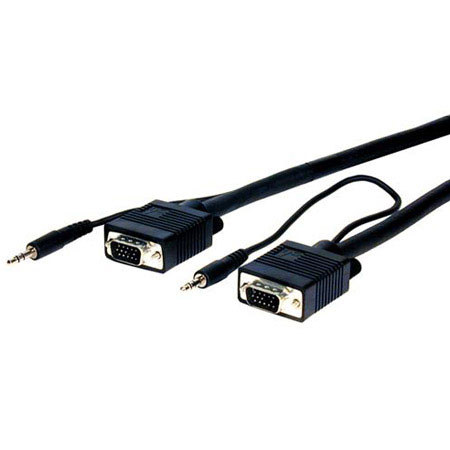

Comprehensive 3' Pro AV/IT Series Micro VGA HD15 Plug to Plug With Audio Cable

SKU: CV15PP3HRA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Comprehensive MVGA15P-P-3HR/A Specifications

  • Connector Type 1

    HD15 Male with stereo 3.5mm Audio Male

  • Connector Type 2

    HD15 Male with stereo 3.5mm Audio Male

  • Resolution

    2048x1536

  • Gauge

    32AWG

  • Center Conductor

    Tinned Copper

  • Connector Finish

    Nickel

  • Shielding

    Triple Shielded, Inner 95% Tinned Copper Wrap and 100% Aluminum Mylar, Outer 95% Tinned Copper Braid

  • UL Rated

    Yes

  • Ferrite Cores

    No

  • RoHS Compliant

    Yes

  • Cable outer diameter

    0.20" (5.08mm)

  • Jacket Type

    Xtra-Flex PVC

  • Temperature Rating

    80 deg C

  • Voltage

    30V

  • Cable Length

    3' / 0.91m

  • Weight

    0.8lbs / 0.36kg

  • UPC Code

    808447012194

About Comprehensive MVGA15P-P-3HR/A

Comprehensive 3' Pro AV/IT Series Micro VGA HD15 Plug To Plug With Audio Cable provides legendary reliability, performance and value. This cable is used as "go to" cable worldwide for boardrooms, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications.

Comprehensive Pro AV/IT Series Micro HD15 VGA cable is perfect for those tight spaces where a full size HD15 connector would be too large. These micro HD15 male to male cable is true high resolution construction with three individually 95% shielded coaxes for maximum signal transfer and high resolution video and graphics. The entire cable is then 100% shielded with a foil shield to eliminate EM and RF interference, even over long distances. Comprehensive goes the extra mile with machined pins which ensures the strength of each pin, to make sure they do not bend or break as imitation cable often do. A stereo 3.5mm mini plug cable is integrated for easy connection of projectors, laptops and other equipment. Pro AV/IT Series cable provide thousands of connections and a lifetime of worry free use. UL and RoHS compliant.

Comprehensive MVGA15P-P-3HR/A Features

  • Micro HD15 Male to HD15 Male
  • Integrated 3.5mm stereo mini plug audio cable
  • Designed to support high-resolution imaging up to QXGA 2048x1536
  • 3 individually 95% tinned copper braid shielded coaxes
  • 100% aluminum foil shield wrap provides extra coverage
  • Micro molded design for easy connecting in tight spaces
  • Molded strain relief for unsurpassed durability
  • X-traflex jacket for easy installation
  • UL and RoHS Compliant

Key Features

  • Micro HD15 Male to HD15 Male
  • Integrated 3.5mm stereo mini plug audio cable
  • Designed to support high-resolution imaging up to QXGA 2048x1536
  • 3 individually 95% tinned copper braid shielded coaxes
  • 100% aluminum foil shield wrap provides extra coverage
  • Micro molded design for easy connecting in tight spaces
