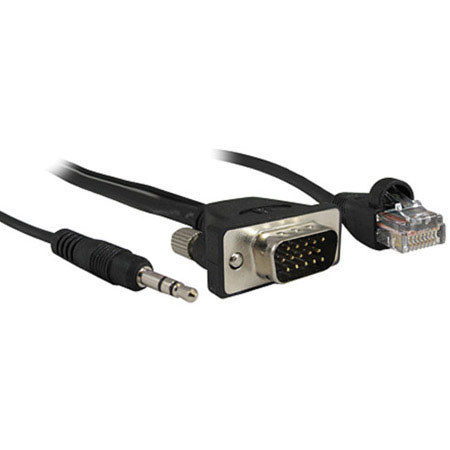

Comprehensive 6' Pro AV/IT Series Micro VGA Male to Male with Audio and LAN Cable

SKU: CV15PP6HRAL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Comprehensive MVGA15P-P-6HR/AL Specifications

  • Connector Type 1

    HD15 Male with stereo 3.5mm Audio Male and RJ45 Male

  • Connector Type 2

    HD15 Male with stereo 3.5mm Audio Male and RJ45 Male

  • Resolution

    2048x1536

  • Gauge

    32AWG

  • Center Conductor

    Tinned Copper

  • Connector Finish

    Nickel

  • Shielding

    Triple Shielded, Inner 95% Tinned Copper Wrap and 100% Aluminum Mylar, Outer 85% Aluminum Braid

  • UL Rated

    Yes

  • Ferrite Cores

    No

  • RoHS Compliant

    Yes

  • Jacket Type

    Xtra-Flex PVC

  • Temperature Rating

    80 deg C

  • Voltage

    30V

  • Cable Length

    6' / 1.83m

  • Weight

    1lbs / 0.45kg

  • UPC Code

    808447064087

About Comprehensive MVGA15P-P-6HR/AL

Become a part of the global community that trusts the Comprehensive 6' Pro AV/IT Series Micro VGA Male to Male with Audio and LAN Cable for its legendary reliability, superior performance, and exceptional value. This versatile cable is the preferred choice worldwide for diverse settings such as boardrooms, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages, and other mission-critical applications.

The Comprehensive Pro AV/IT Series Micro HD15 VGA cable is ingeniously designed for tight spaces where a full-size HD15 connector would be too large. This micro HD15 male to male cable boasts premium construction, featuring three individually 95% shielded coaxes for maximum signal transfer, ensuring crystal clear transmission even in the most demanding environments.

To further enhance its performance, the entire cable is 100% shielded with a foil shield. This unique feature effectively eliminates electromagnetic and radio frequency interference, guaranteeing uninterrupted signal transmission even over long distances.

Integrated into this high-performance cable is a stereo 3.5mm mini plug cable and a RJ45 LAN cable. These additions make it easy to connect a wide range of devices, including projectors and laptops, making it an indispensable tool for your audio-visual and IT needs.

The Comprehensive 6' Pro AV/IT Series Micro VGA Male to Male with Audio and LAN Cable is not only high-performing but also safe and environmentally friendly. It is UL certified and RoHS compliant, ensuring it meets the highest standards of safety and sustainability. Experience the difference with this superior VGA cable that seamlessly combines functionality, safety, and value.

Comprehensive MVGA15P-P-6HR/AL Features

  • Micro HD15 Male to Male with Audio and LAN
  • Designed to support high-resolution imaging up to QXGA 2048x1536
  • 3 individually 95% tinned copper braid shielded coaxes
  • 100% aluminum foil shield wrap provides extra coverage
  • Micro molded design for easy connecting in tight spaces
  • Molded strain relief for unsurpassed durability
  • X-traflex jacket for easy installation
  • UL and RoHS Compliant

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • High-performance 6' Pro AV/IT Series Micro VGA Male to Male with Audio and LAN Cable
  • Premium construction with three individually 95% shielded coaxes for maximum signal transfer
  • 100% foil shield to eliminate electromagnetic and radio frequency interference
  • Integrated stereo 3.5mm mini plug cable and RJ45 LAN cable for versatile connectivity
  • Ideal for tight spaces with its compact Micro HD15 VGA design
  • UL certified and RoHS compliant for safety and sustainability standards
