20% Off

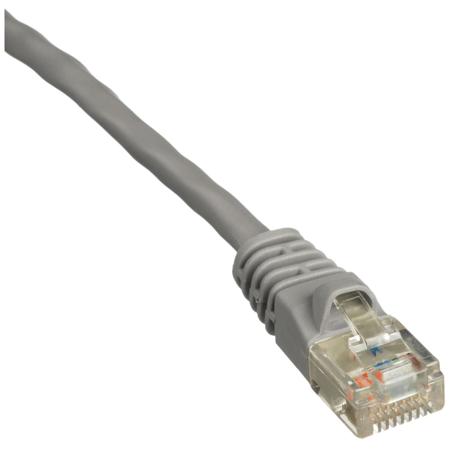

Comprehensive 10' Cat5e 350Mhz Snagless Patch Cable, Gray

SKU: CV35010GR MFR: CAT5-350-10GRY
$4.55
$5.69
Save: $1.14 (20%)
Earn VIP Reward Points

Key Features

  • Get a reliable, high-speed connection with this 10ft Cat5e Ethernet cable for seamless data transfer.
  • This snagless patch cable prevents damage to the RJ45 connector during installation and use.
  • Enjoy crystal-clear voice, data, and video with a bandwidth of up to 350Mhz on this Cat5e cable.
  • Our durable Cat5e cable is verified to EIA/TIA 568B.2 standards, ensuring top performance.
  • Built with 4 twisted pairs of 24 AWG copper wire, this Ethernet cable offers excellent conductivity.
  • This gray Cat5e cable's polycarbonate RJ45 connectors feature gold-plated contacts for optimal connectivity.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5-350-10GRY Specifications

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350Mhz

  • Standards

    Meets all Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Molded snagless boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50u gold

  • Outer Diameter

    5.3mm

  • Jacket

    PVC

  • RoHS Compliant

    Yes

  • Weight

    0.3lbs / 0.14kg

  • UPC Code

    808447024692

About Comprehensive CAT5-350-10GRY

Comprehensive 10' Cat5e Snagless Patch Gray Cable provide 350 Mhz bandwidth for high-speed signal transmission for distributing data, voice and video on today's high speed ethernet and gigabit networks. Comprehensive 10' Cat5e 350Mhz Snagless Patch Cable meet all CAT5E TIA/EIA standards. Each individual pair is attached together to ensure proper spacing between the twists of the wire which greatly reduces loss compared to standard 100Mhz cable. Applications include 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI x3T9.5), 55/155 Mbps A and Voice.

Comprehensive 10' Cat5e 350Mhz Snagless Patch Cable have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief.

Comprehensive CAT5-350-10GRY Features

  • Gold Plated RJ45 Male to RJ45 Male
  • CAT5E 350 Mhz High Speed
  • 24 awg 4 pair twisted pair construction
  • Meets all 568A and 568B TIA/EIA standards
  • Snagless Boot for easy installation
  • X-traflex jacket
  • RoHS Compliant
  • UL Rated

Warranty Information

This product has a limited lifetime warranty.
