Review Summary
1000 BASE-T
100 BASE-T
10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
55/155 Mbps A, and Voice
RJ45 Male
RJ45 Male
Good
Supports voice/data/video distribution applications up to 350 MHz
Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2
Molded snagless boot
4 Twisted Pairs 24 AWG Bare copper stranded cable
89 Ohm/km (maximum)
100 Ohm/km (minimum)
Polycarbonate
Copper alloy plated with 50-micron gold
0.2" (5.3mm)
PVC
Red
Yes
1' (0.30m)
1.5 lb (0.68kg)
808447074024

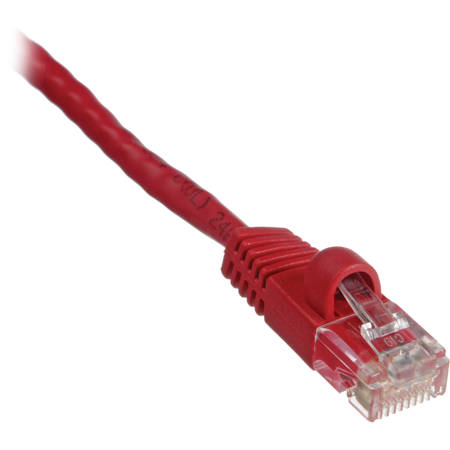

Comprehensive CAT5e (Enhanced) cables provide 350 MHz bandwidth for high-speed signal transmission for distributing data, voice and video on today's high speed ethernet and gigabit networks. Comprehensive CAT5e 350 MHz Snagless Patch Cables meet all CAT5e TIA/EIA standards. Each individual pair is attached together to ensure proper spacing between the twists of the wire which greatly reduces loss compared to standard 100 MHz cable.
Comprehensive CAT5e 350 MHz Snagless Patch Cables have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief. CAT5e Patch Cables are available in a variety of colors.
When it has to work, it has to be Comprehensive!
