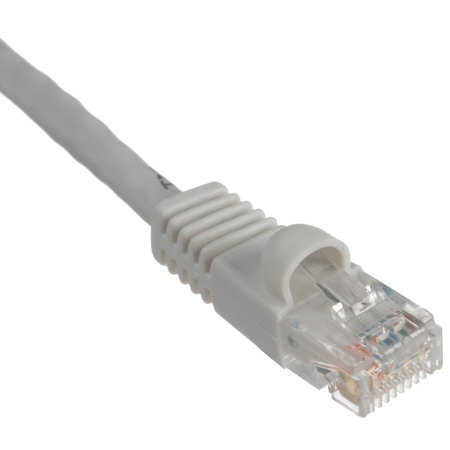

Comprehensive CAT5e 350 MHz Snagless Patch Cable, 1', White Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
    55/155 Mbps A, and Voice

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Molded snagless boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    White

  • RoHS Compliant

    Yes

  • Length

    1' (0.30m)

  • Weight

    1.5 lb (0.68kg)

  • UPC Code

    808447074031

About Comprehensive CAT5e 350 MHz Snagless Patch Cable, 1', White

Comprehensive CAT5e (Enhanced) cables provide 350 MHz bandwidth for high-speed signal transmission for distributing data, voice and video on today's high speed ethernet and gigabit networks. Comprehensive CAT5e 350 MHz Snagless Patch Cables meet all CAT5e TIA/EIA standards. Each individual pair is attached together to ensure proper spacing between the twists of the wire which greatly reduces loss compared to standard 100 MHz cable.

Comprehensive CAT5e 350 MHz Snagless Patch Cables have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief. CAT5e Patch Cables are available in a variety of colors.

When it has to work, it has to be Comprehensive!

Comprehensive CAT5e 350 MHz Snagless Patch Cable, 1', White Features

  • Gold Plated RJ45 Male to RJ45 Male
  • CAT5e 350 MHz High Speed
  • 24 AWG 4 pair twisted pair construction
  • Meets all 568A and 568B TIA/EIA standards
  • Snagless Boot for easy installation
  • X-traflex jacket
  • RoHS Compliant
  • UL Rated

Key Features

  • Gold Plated RJ45 Male to RJ45 Male
  • CAT5e 350 MHz High Speed
  • 24 AWG 4 pair twisted pair construction
  • Meets all 568A and 568B TIA/EIA standards
  • Snagless Boot for easy installation
  • X-traflex jacket

What's in the box:

  • CAT5e 350 MHz Snagless Patch Cable (1'/White)
  • Comprehensive Lifetime Limited Warranty
