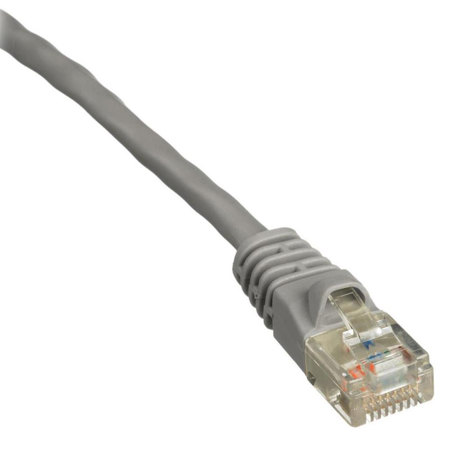

Comprehensive CAT5e 350 MHz Snagless Patch Cable, 5', Gray

SKU: CV53505GRY MFR: CAT5-350-5GRY
$3.19
Earn VIP Reward Points

Key Features

  • Experience reliable connections with this 5-foot Gray CAT5e Ethernet cable.
  • Achieve fast data transfer speeds up to 350 MHz with this snagless patch cable.
  • Perfect for Gigabit Ethernet; this CAT5e cable supports 1000BASE-T networks.
  • Built to last, the durable construction ensures a long-lasting network connection.
  • Gold-plated RJ45 connectors provide a secure and corrosion-resistant link.
  • This 5ft CAT5e cable is ideal for connecting computers, routers, and switches.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Snagless Patch Cable, 5', Gray Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
    55/155 Mbps A, and Voice

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Molded snagless boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Gray

  • RoHS Compliant

    Yes

  • Length

    5' (1.52m)

  • Weight

    1.5 lb (0.68kg)

  • UPC Code

    808447073898

About Comprehensive CAT5e 350 MHz Snagless Patch Cable, 5', Gray

A Comprehensive CAT5e 350 MHz Snagless Patch Cable, measuring 5 feet in length and presented in a sleek gray color, is a high-performance solution for your networking needs. This enhanced CAT5e cable is designed to provide a robust 350 MHz bandwidth, facilitating high-speed signal transmission. It's an ideal choice for distributing data, voice, and video across high-speed Ethernet and gigabit networks.

Adhering to all CAT5e TIA/EIA standards, this cable ensures reliable performance and compatibility. Each individual pair of wires is meticulously attached together, maintaining proper spacing between the twists. This careful design significantly reduces signal loss compared to standard 100 MHz cables, enhancing your network's efficiency and speed.

The Comprehensive CAT5e 350 MHz Snagless Patch Cable features a molded, low-profile, snagless boot. This thoughtful design element not only simplifies the installation process but also provides superior strain relief, extending the lifespan of the cable.

Available in a variety of colors, the CAT5e Patch Cables offer flexibility to match your specific aesthetic or organizational needs. Trust in the Comprehensive brand when your network needs to perform without compromise.

Comprehensive CAT5e 350 MHz Snagless Patch Cable, 5', Gray Features

  • Gold Plated RJ45 Male to RJ45 Male
  • CAT5e 350 MHz High Speed
  • 24 AWG 4 pair twisted pair construction
  • Meets all 568A and 568B TIA/EIA standards
  • Snagless Boot for easy installation
  • X-traflex jacket
  • RoHS Compliant
  • UL Rated

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience reliable connections with this 5-foot Gray CAT5e Ethernet cable.
  • Achieve fast data transfer speeds up to 350 MHz with this snagless patch cable.
  • Perfect for Gigabit Ethernet; this CAT5e cable supports 1000BASE-T networks.
  • Built to last, the durable construction ensures a long-lasting network connection.
  • Gold-plated RJ45 connectors provide a secure and corrosion-resistant link.
  • This 5ft CAT5e cable is ideal for connecting computers, routers, and switches.

What's in the box:

  • CAT5e 350 MHz Snagless Patch Cable (5'/Gray)
  • Comprehensive Lifetime Limited Warranty
