What is the purpose of the Comprehensive CAT5e 350 MHz Assembly Cable?

The Comprehensive CAT5e 350 MHz Assembly Cable is designed for Ethernet networking. It is used to connect devices such as computers, routers, and switches to create a network.

Why does this cable reduce impedance and structural return loss?

The cable is designed to meet all CAT5e TIA/EIA standards, which includes specifications for reducing both impedance and structural return loss. This contributes to more efficient data transmission and reduced signal loss.

What is Near-End Crosstalk (NEXT) and why is it important?

Near-End Crosstalk (NEXT) is interference that can affect the signal quality in a cable. The Comprehensive CAT5e 350 MHz Assembly Cable is designed to minimize NEXT levels, thus enhancing the overall performance and reliability of your network.

Why does this cable come in different colors?

The different colors allow for easy color-coding of your network installation. This can simplify management and maintenance by making it easier to identify and trace cables in a complex network setup.

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 14', Black Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Black

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    14' (4.26m)

  • Weight

    0.2 lb (90.7g)

  • UPC Code

    808447053852

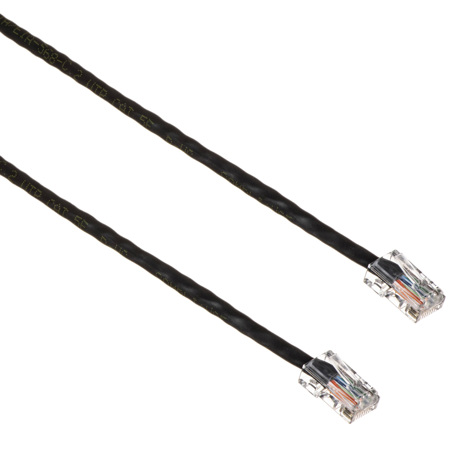

About Comprehensive CAT5e 350 MHz Assembly Cable, 14', Black

The Comprehensive CAT5e 350 MHz Assembly Cable, measuring 14 feet in length and finished in a sleek black color, is meticulously designed to meet the demands of today's advanced fast Ethernet and gigabit computer networks. This high-speed, high-quality cable is essential for distributing data, voice, and video, ensuring you stay ahead in the fast-paced digital world.

Engineered to handle bandwidth-intensive applications up to 350 MHz and beyond, this durable and reliable CAT5e cable meets all TIA/EIA standards. It significantly reduces both impedance and structural return loss (SRL), outperforming standard 100 MHz wire, making it an ideal choice for robust and efficient networking.

The cable's construction features high-quality material and a shortened body plug without a boot. This thoughtful design minimizes Near-End Crosstalk (NEXT) levels, enhancing the overall performance and reliability of your network.

Available in a variety of colors, this flexible and affordable CAT5e 350 MHz Assembly Cable allows for easy color-coding of your network installation, simplifying management and maintenance. Whether you're connecting computers, routers, or switches, this cable offers the flexibility and reliability you need for your networking requirements.

Comprehensive CAT5e 350 MHz Assembly Cable, 14', Black Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Designed for advanced fast Ethernet and gigabit computer networks
  • High-speed CAT5e 350 MHz cable for efficient data, voice, and video distribution
  • Meets all TIA/EIA standards with reduced impedance and structural return loss
  • Constructed with high-quality material for enhanced durability and reliability
  • Features a shortened body plug without a boot to minimize Near-End Crosstalk (NEXT)
  • Available in various colors for easy network installation color-coding

What's in the box:

  • CAT5e 350 MHz Assembly Cable (14'/Black)
  • Comprehensive Lifetime Limited Warranty
