20% Off

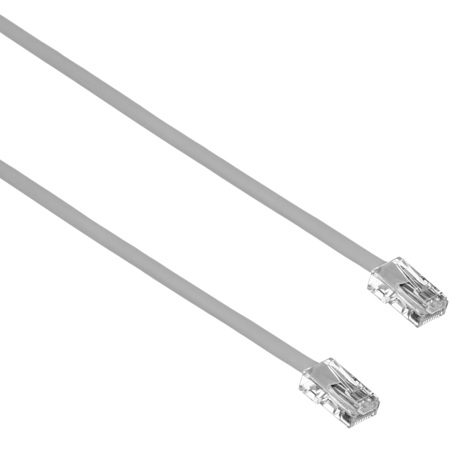

Comprehensive CAT5e 350 MHz Assembly Cable, 15', Gray

SKU: CV5EASY15GRY MFR: CAT5E-ASY-15GRY
$6.79
$8.49
Save: $1.7 (20%)
Earn VIP Reward Points

Key Features

  • Ensure a reliable network connection with this 15ft CAT5e Ethernet cable.
  • Experience fast data transfers up to 350 MHz with our high-quality CAT5e cable.
  • Connect network adapters, routers, and modems using this versatile RJ45 cable.
  • Built to last, this durable CAT5e cable meets stringent TIA/EIA standards.
  • Enjoy a clear, consistent signal with our shielded, 4-pair twisted CAT5e cable.
  • Perfect for home or office, this gray CAT5e cable blends seamlessly into any setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 15', Gray Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Gray

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    15' (4.57m)

  • Weight

    0.25 lb (113.39g)

  • UPC Code

    808447053760

About Comprehensive CAT5e 350 MHz Assembly Cable, 15', Gray

A high-performance solution for today's most demanding ethernet and gigabit computer networks, the CAT5e 350 MHz Assembly Cable, 15', Gray, is designed to efficiently distribute data, voice, and video. This Comprehensive's Assembly CAT5e 350 MHz Patch Cable is engineered to support bandwidth-intensive applications up to 350 MHz and beyond, ensuring you stay ahead in the fast-paced digital world.

Compliant with all CAT5e TIA/EIA standards, this cable significantly reduces both impedance and structural return loss (SRL) when compared to standard 100 MHz wire. This results in a smoother, more reliable data transmission, enhancing your network's overall performance.

The CAT5e 350 MHz Assembly Cable is constructed with superior quality cable and features a shortened body plug without a boot. This unique design minimizes Near-End Crosstalk (NEXT) levels, further improving the integrity of your data transmission.

Available in a variety of colors, this cable allows for easy color-coding of your network installation, aiding in organization and identification. Whether you're setting up a home network or enhancing a professional one, the CAT5e 350 MHz Assembly Cable, 15', Gray, delivers the high-speed, high-quality connection you need.

Comprehensive CAT5e 350 MHz Assembly Cable, 15', Gray Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure a reliable network connection with this 15ft CAT5e Ethernet cable.
  • Experience fast data transfers up to 350 MHz with our high-quality CAT5e cable.
  • Connect network adapters, routers, and modems using this versatile RJ45 cable.
  • Built to last, this durable CAT5e cable meets stringent TIA/EIA standards.
  • Enjoy a clear, consistent signal with our shielded, 4-pair twisted CAT5e cable.
  • Perfect for home or office, this gray CAT5e cable blends seamlessly into any setup.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (15'/Gray)
  • Comprehensive Lifetime Limited Warranty
