What type of networks is the CAT5e 350 MHz Assembly Cable suitable for?

The CAT5e 350 MHz Assembly Cable is suitable for advanced fast Ethernet and gigabit computer networks.

What is the purpose of the shortened body plug in the CAT5e 350 MHz Assembly Cable?

The shortened body plug in the CAT5e 350 MHz Assembly Cable is designed to minimize Near-End Crosstalk (NEXT) levels, improving the overall performance of your network.

What standards does the CAT5e 350 MHz Assembly Cable meet?

The CAT5e 350 MHz Assembly Cable meets all CAT5e TIA/EIA standards, ensuring high-quality performance and reliability.

Why is the CAT5e 350 MHz Assembly Cable white?

The white color of the CAT5e 350 MHz Assembly Cable allows for easy color-coding during network installation, and adds a touch of elegance to your setup.

Can the CAT5e 350 MHz Assembly Cable be used for connecting different networking equipment?

Yes, the flexible and reliable CAT5e 350 MHz Assembly Cable can be used to connect a variety of networking equipment including computers, routers, and switches.

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 15', White Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    White

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    15' (4.57m)

  • Weight

    0.25 lb (113.39g)

  • UPC Code

    808447054460

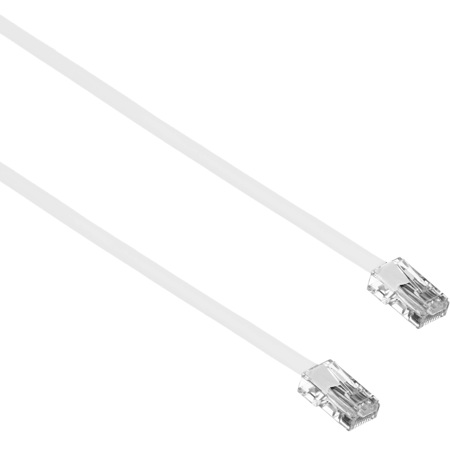

About Comprehensive CAT5e 350 MHz Assembly Cable, 15', White

Explore the world of high-speed networking with our CAT5e 350 MHz Assembly Cable. Designed to meet the demands of advanced fast Ethernet and gigabit computer networks, this high-quality, durable, and reliable cable is essential for distributing data, voice, and video seamlessly.

Our CAT5e 350 MHz Assembly Cable is engineered to handle bandwidth-intensive applications up to 350 MHz and beyond, ensuring you stay ahead in the networking game. Each cable meets all CAT5e TIA/EIA standards, offering a significant reduction in both impedance and structural return loss (SRL) compared to standard 100 MHz wire.

Constructed with superior quality cable and a shortened body plug without a boot, this design effectively minimizes Near-End Crosstalk (NEXT) levels. The white color of the cable not only adds a touch of elegance but also allows for easy color-coding of your network installation.

Whether you're connecting computers, routers, switches, or other networking equipment, our flexible and affordable CAT5e 350 MHz Assembly Cable is the reliable choice for your networking needs. Experience the difference in quality and performance with our 15-foot white CAT5e 350 MHz Assembly Cable.

Comprehensive CAT5e 350 MHz Assembly Cable, 15', White Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • High-speed CAT5e 350 MHz Assembly Cable for advanced fast Ethernet and gigabit computer networks
  • Designed to handle bandwidth-intensive applications up to 350 MHz and beyond
  • Meets all CAT5e TIA/EIA standards, significantly reducing impedance and structural return loss
  • Elegant white color for easy network installation color-coding
  • Flexible and reliable 15-foot cable for connecting a variety of networking equipment

What's in the box:

  • CAT5e 350 MHz Assembly Cable (15'/White)
  • Comprehensive Lifetime Limited Warranty
