Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of networks is the Comprehensive CAT5e 350 MHz Assembly Cable designed for?

The Comprehensive CAT5e 350 MHz Assembly Cable is designed for advanced fast Ethernet and gigabit computer networks, making it ideal for data, voice, and video distribution.

What is the advantage of the shortened body plug without a boot in this cable?

The shortened body plug without a boot in the Comprehensive CAT5e 350 MHz Assembly Cable minimizes Near-End Crosstalk (NEXT) levels, which enhances network performance by reducing interference.

Why is this cable available in purple?

The unique purple color of the Comprehensive CAT5e 350 MHz Assembly Cable allows for easy color-coding of network installations, helping to better organize and identify connections.

Does this cable meet industry standards?

Yes, the Comprehensive CAT5e 350 MHz Assembly Cable meets all CAT5e TIA/EIA standards, ensuring a reliable and high-quality solution for your networking needs.

Can this cable handle bandwidth-intensive applications?

Absolutely, the Comprehensive CAT5e 350 MHz Assembly Cable is engineered to handle bandwidth-intensive applications up to 350 MHz and beyond, offering optimal performance for your network.

Reviews about this item

Review Summary

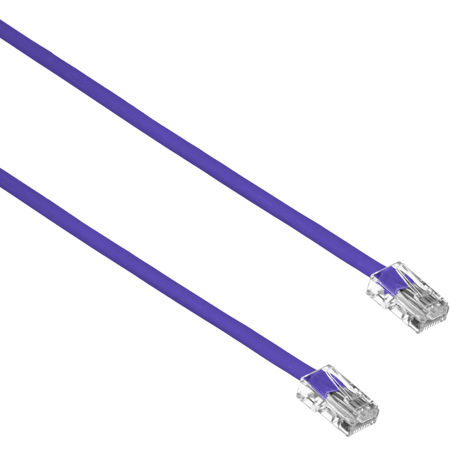

Comprehensive CAT5e 350 MHz Assembly Cable, 1', Purple Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Purple

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    1' (0.30m)

  • Weight

    0.05 lb (22.6g)

  • UPC Code

    808447054507

About Comprehensive CAT5e 350 MHz Assembly Cable, 1', Purple

From high-speed internet browsing to seamless video streaming, the Comprehensive CAT5e 350 MHz Assembly Cable is your reliable partner for all your networking needs. This 1-foot, purple-colored cable is specifically designed to support advanced fast Ethernet and gigabit computer networks, ensuring optimal data, voice, and video distribution.

Engineered to handle bandwidth-intensive applications up to 350 MHz and beyond, this CAT5e cable meets all TIA/EIA standards, offering you a high-quality, durable, and reliable networking solution. Its construction significantly reduces both impedance and structural return loss (SRL), outperforming standard 100 MHz wire and ensuring a smoother, faster network experience.

The Comprehensive CAT5e 350 MHz Assembly Cable features a shortened body plug without a boot, a design that effectively minimizes Near-End Crosstalk (NEXT) levels, enhancing your network's performance. The unique purple color of this cable adds a vibrant touch, making it easy to color-code your network installation.

Whether you're setting up a home network or enhancing your office setup, this flexible and affordable CAT5e cable from Comprehensive is a top choice for a reliable and high-quality networking solution.

Comprehensive CAT5e 350 MHz Assembly Cable, 1', Purple Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Designed to support bandwidth-intensive applications up to 350 MHz and beyond
  • Meets all CAT5e TIA/EIA standards for a reliable and high-quality networking solution
  • Reduces impedance and structural return loss (SRL), outperforming standard 100 MHz wire
  • Features a shortened body plug without a boot to minimize Near-End Crosstalk (NEXT) levels
  • Unique purple color makes it easy to color-code network installations for better organization

What's in the box:

  • CAT5e 350 MHz Assembly Cable (1'/Purple)
  • Comprehensive Lifetime Limited Warranty
