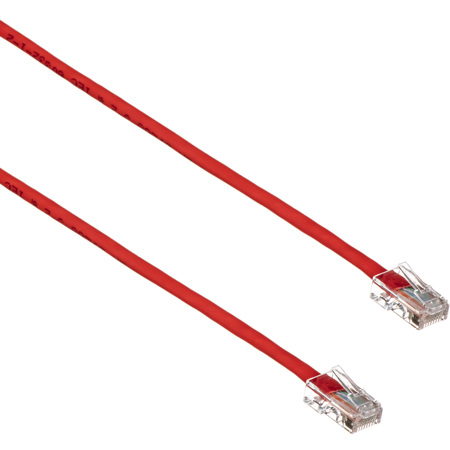

Comprehensive CAT5e 350 MHz Assembly Cable, 1', Red

SKU: CV5EASY1RED MFR: CAT5E-ASY-1RED
$2.63
Earn VIP Reward Points

Key Features

  • Ensure reliable network connections with this 1ft CAT5e Ethernet cable, perfect for home or office.
  • Experience stable data transfer with our 350 MHz CAT5e cable, ideal for routers and modems.
  • This red CAT5e patch cable supports voice, data, and video, up to 350 MHz bandwidth.
  • Connect network adapters, hubs, and switches using this high-quality, durable CAT5e cable.
  • Enjoy a lifetime limited warranty on this Comprehensive CAT5e cable for peace of mind.
  • Built to TIA/EIA standards, this red CAT5e cable guarantees optimal performance and connectivity.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 1', Red Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Red

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    1' (0.30m)

  • Weight

    0.05 lb (22.6g)

  • UPC Code

    808447054101

About Comprehensive CAT5e 350 MHz Assembly Cable, 1', Red

Today's advanced fast ethernet and gigabit computer networks require Enhanced Category 5 high-speed cabling to distribute data, voice and video. Comprehensive's Assembly CAT5e 350 MHz Patch Cables will keep you ahead of the game. These cables will handle bandwidth intensive applications up to 350 MHz and beyond. Each meets all CAT5e TIA/EIA standards, and drastically reduce both impedance and structural return loss (SRL) as compared to standard 100 MHz wire! Constructed with high-quality cable and a shortened body plug without a boot, this design will keep Near-End Crosstalk (NEXT) levels to a minimum. Available in a variety of colors to easily color-code your network installation.

Comprehensive CAT5e 350 MHz Assembly Cable, 1', Red Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Ensure reliable network connections with this 1ft CAT5e Ethernet cable, perfect for home or office.
  • Experience stable data transfer with our 350 MHz CAT5e cable, ideal for routers and modems.
  • This red CAT5e patch cable supports voice, data, and video, up to 350 MHz bandwidth.
  • Connect network adapters, hubs, and switches using this high-quality, durable CAT5e cable.
  • Enjoy a lifetime limited warranty on this Comprehensive CAT5e cable for peace of mind.
  • Built to TIA/EIA standards, this red CAT5e cable guarantees optimal performance and connectivity.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (1'/Red)
  • Comprehensive Lifetime Limited Warranty
