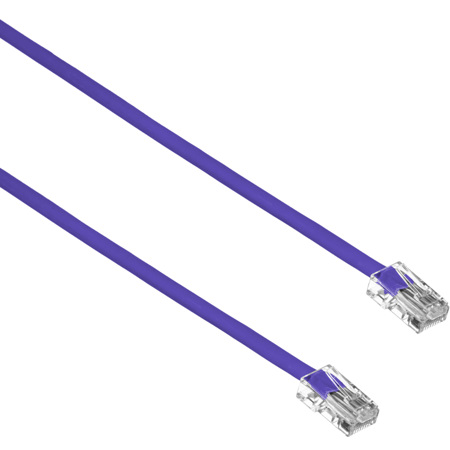

Comprehensive CAT5e 350 MHz Assembly Cable, 25', Purple

SKU: CV5EASY25PUR MFR: CAT5E-ASY-25PUR
$9.27
$11.59
Save: $2.32 (20%)
Earn VIP Reward Points

Key Features

  • Get reliable connectivity with this 25ft purple CAT5e Ethernet cable for your network.
  • Enjoy a stable connection for network adapters, routers, and modems with this CAT5e cable.
  • This high-performance CAT5e cable supports up to 350 MHz for fast data and video streaming.
  • Built to last, this durable CAT5e cable meets all TIA/EIA standards for worry-free use.
  • Ensure optimal signal quality with gold-plated connectors on this 25ft CAT5e Ethernet cable.
  • Connect with confidence using this Comprehensive CAT5e cable, backed by a lifetime warranty.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 25', Purple Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Purple

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    25' (7.62m)

  • Weight

    0.5 lb (226.79g)

  • UPC Code

    808447054576

About Comprehensive CAT5e 350 MHz Assembly Cable, 25', Purple

Explore the world of high-speed connectivity with the CAT5e 350 MHz Assembly Cable, 25', Purple. Designed to meet the demands of advanced fast ethernet and gigabit computer networks, this Enhanced Category 5 cable is engineered to distribute data, voice, and video with exceptional efficiency. With the capacity to handle bandwidth-intensive applications up to 350 MHz and beyond, this cable is a powerful tool for any network installation.

Adhering to all CAT5e TIA/EIA standards, the CAT5e 350 MHz Assembly Cable significantly reduces both impedance and structural return loss (SRL) when compared to standard 100 MHz wire. This ensures a smoother, more reliable data transmission, keeping your network running at peak performance.

The cable is constructed with high-quality materials for durability and longevity. The shortened body plug, designed without a boot, minimizes Near-End Crosstalk (NEXT) levels, further enhancing the cable's performance.

Available in a vibrant purple color, this CAT5e 350 MHz Assembly Cable not only delivers superior performance but also allows for easy color-coding of your network installation. This makes identifying and troubleshooting network connections simpler and more efficient. Experience the difference in speed and reliability with our CAT5e 350 MHz Assembly Cable.

Comprehensive CAT5e 350 MHz Assembly Cable, 25', Purple Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable connectivity with this 25ft purple CAT5e Ethernet cable for your network.
  • Enjoy a stable connection for network adapters, routers, and modems with this CAT5e cable.
  • This high-performance CAT5e cable supports up to 350 MHz for fast data and video streaming.
  • Built to last, this durable CAT5e cable meets all TIA/EIA standards for worry-free use.
  • Ensure optimal signal quality with gold-plated connectors on this 25ft CAT5e Ethernet cable.
  • Connect with confidence using this Comprehensive CAT5e cable, backed by a lifetime warranty.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (25'/Purple)
  • Comprehensive Lifetime Limited Warranty
