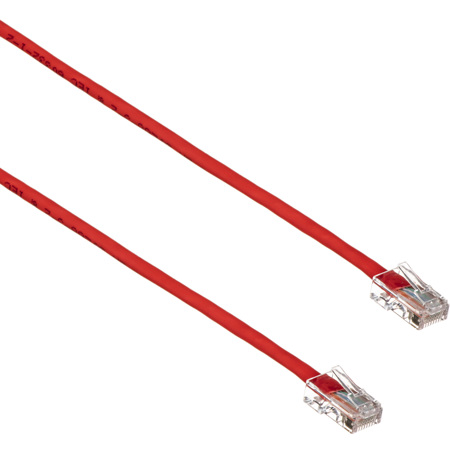

Comprehensive CAT5e 350 MHz Assembly Cable, 25', Red

SKU: CV5EASY25RED MFR: CAT5E-ASY-25RED
$9.27
$11.59
Save: $2.32 (20%)
Earn VIP Reward Points

Key Features

  • Get reliable network connections with this 25 ft red CAT5e Ethernet cable.
  • Enjoy fast, stable data transfer with a 350 MHz bandwidth Ethernet cable.
  • Connect network adapters, routers, and modems using this versatile CAT5e cable.
  • This durable CAT5e cable is verified to EIA/TIA 568B.2 standards for quality.
  • Experience superior conductivity with copper alloy plated RJ45 Ethernet connectors.
  • Trust in our lifetime limited warranty for long-lasting CAT5e Ethernet cable performance.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 25', Red Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Red

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    25' (7.62m)

  • Weight

    0.5 lb (226.79g)

  • UPC Code

    808447054170

About Comprehensive CAT5e 350 MHz Assembly Cable, 25', Red

Take your networking capabilities to the next level with the CAT5e 350 MHz Assembly Cable in vibrant red. Designed to meet the demands of advanced fast ethernet and gigabit computer networks, this high-speed Enhanced Category 5 cable is essential for distributing data, voice, and video with superior efficiency.

Our CAT5e 350 MHz Assembly Cable is engineered to handle bandwidth-intensive applications up to 350 MHz and beyond, ensuring you stay ahead in the fast-paced digital world. Each cable is meticulously crafted to meet all CAT5e TIA/EIA standards, providing you with a reliable and high-performing networking solution.

One of the key features of this assembly cable is its ability to drastically reduce both impedance and structural return loss (SRL) when compared to standard 100 MHz wire. This results in improved data transmission and reduced signal loss, enhancing the overall performance of your network.

The CAT5e 350 MHz Assembly Cable is constructed with high-quality cable and features a shortened body plug without a boot. This innovative design minimizes Near-End Crosstalk (NEXT) levels, further boosting the efficiency of your data transmission.

Available in a striking red color, this assembly cable allows you to easily color-code your network installation, adding an element of organization and visual appeal. Elevate your networking setup with the CAT5e 350 MHz Assembly Cable, a perfect blend of performance, reliability, and style.

Comprehensive CAT5e 350 MHz Assembly Cable, 25', Red Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable network connections with this 25 ft red CAT5e Ethernet cable.
  • Enjoy fast, stable data transfer with a 350 MHz bandwidth Ethernet cable.
  • Connect network adapters, routers, and modems using this versatile CAT5e cable.
  • This durable CAT5e cable is verified to EIA/TIA 568B.2 standards for quality.
  • Experience superior conductivity with copper alloy plated RJ45 Ethernet connectors.
  • Trust in our lifetime limited warranty for long-lasting CAT5e Ethernet cable performance.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (25'/Red)
  • Comprehensive Lifetime Limited Warranty
