20% Off

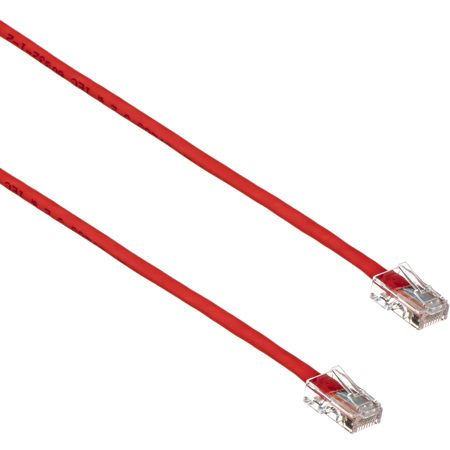

Comprehensive CAT5e 350 MHz Assembly Cable, 3', Red

SKU: CV5EASY3RED MFR: CAT5E-ASY-3RED
$2.95
Earn VIP Reward Points

Key Features

  • Get reliable connectivity with this 3 ft red CAT5e Ethernet cable for your network.
  • This high-performance CAT5e cable supports up to 350 MHz for fast data and video.
  • Perfect for connecting network adapters, routers, and modems with RJ45 connectors.
  • Enjoy a durable and long-lasting network connection with our lifetime limited warranty.
  • Ensure a stable connection with this 24 AWG stranded copper CAT5e assembly cable.
  • This red CAT5e cable meets all TIA/EIA standards, ensuring top-notch compatibility.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ABDUR-RAHIM R : Required Standard System Replacement.

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 3', Red Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM, and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Red

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    3' (0.91m)

  • Weight

    0.09 lb (40.8g)

  • UPC Code

    808447054118

About Comprehensive CAT5e 350 MHz Assembly Cable, 3', Red

Just when you thought your Ethernet networking couldn't get any better, our CAT5e 350 MHz Assembly Cable steps in to elevate your experience. This 3-foot, red assembly cable is specifically designed to meet the demands of today's advanced fast Ethernet and gigabit computer networks.

Constructed with high-quality, durable materials, this cable is engineered to distribute data, voice, and video at lightning-fast speeds. It's not just a cable; it's a powerhouse that can handle bandwidth-intensive applications up to 350 MHz and beyond, ensuring you stay ahead in the digital game.

Compliant with all CAT5e TIA/EIA standards, this assembly cable significantly reduces both impedance and structural return loss (SRL) compared to standard 100 MHz wire. This results in a more reliable and efficient network with minimized Near-End Crosstalk (NEXT) levels.

The cable's vibrant red color isn't just for aesthetics; it also allows for easy color-coding during network installation, making it a versatile addition to your networking toolkit. Choose our CAT5e 350 MHz Assembly Cable for a high-quality, affordable solution to your networking needs.

Comprehensive CAT5e 350 MHz Assembly Cable, 3', Red Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable connectivity with this 3 ft red CAT5e Ethernet cable for your network.
  • This high-performance CAT5e cable supports up to 350 MHz for fast data and video.
  • Perfect for connecting network adapters, routers, and modems with RJ45 connectors.
  • Enjoy a durable and long-lasting network connection with our lifetime limited warranty.
  • Ensure a stable connection with this 24 AWG stranded copper CAT5e assembly cable.
  • This red CAT5e cable meets all TIA/EIA standards, ensuring top-notch compatibility.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (3'/Red)
  • Comprehensive Lifetime Limited Warranty
