1000 BASE-T
100 BASE-T
10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
55/155 Mbps ATM, and Voice
Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications
TSB 568B (AT&T 258A)
RJ45 Male
RJ45 Male
Good
Supports voice/data/video distribution applications up to 350 MHz
Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2
Assembled connectors, no boot
4 Twisted Pairs 24 AWG Bare copper stranded cable
89 Ohm/km (maximum)
100 Ohm/km (minimum)
Polycarbonate
Copper alloy plated with 50-micron gold
0.2" (5.3mm)
PVC
Orange
Yes
TIA/EIA
50' (15.24m)
1 lb (453.6g)
808447054385

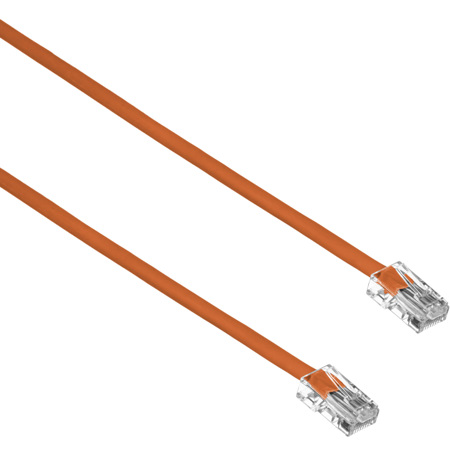

A robust and reliable solution for your networking needs, the CAT5e 350 MHz Assembly Cable, measuring 50 feet in length and presented in a vibrant orange color, is designed to support the demands of today's advanced fast Ethernet and gigabit computer networks. This high-quality cable is engineered to distribute data, voice, and video, ensuring you stay ahead in the fast-paced digital world.
The CAT5e 350 MHz Assembly Cable is capable of handling bandwidth-intensive applications up to 350 MHz and beyond, making it an ideal choice for high-speed networking. Each cable is meticulously crafted to meet all CAT5e TIA/EIA standards, significantly reducing both impedance and structural return loss (SRL) when compared to standard 100 MHz wire.
Constructed with premium-grade cable and a shortened body plug without a boot, this design effectively minimizes Near-End Crosstalk (NEXT) levels. The vibrant orange color of the cable not only adds a visual appeal but also aids in easy color-coding of your network installation.
Choose the CAT5e 350 MHz Assembly Cable for a durable, flexible, and affordable networking solution that delivers reliable performance every time.
