Just Reduced

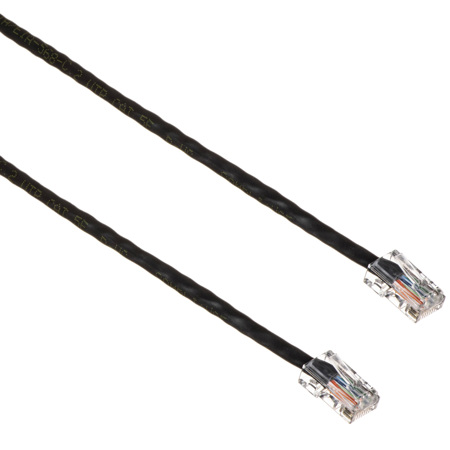

Comprehensive CAT5e 350 MHz Assembly Cable, 5', Black

SKU: CV5EASY5BLK MFR: CAT5E-ASY-5BLK
$3.43
Earn VIP Reward Points

Key Features

  • Get a reliable connection with this 5-foot black CAT5e Ethernet cable for your network.
  • This CAT5e cable supports up to 350 MHz for fast data transfers, perfect for streaming.
  • Use this Ethernet cable with network adapters, routers, and modems for a stable link.
  • Enjoy a durable and long-lasting connection thanks to the high-quality construction.
  • This CAT5e cable meets TIA/EIA standards, ensuring compatibility and top performance.
  • Connect with confidence using gold-plated RJ45 connectors for a secure Ethernet connection.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 5', Black Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM, and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Black

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    5' (1.5m)

  • Weight

    0.1 lb (45g)

  • UPC Code

    808447053821

About Comprehensive CAT5e 350 MHz Assembly Cable, 5', Black

What sets the Comprehensive CAT5e 350 MHz Assembly Cable apart is its ability to support advanced fast Ethernet and gigabit computer networks. This high-speed, enhanced Category 5 cable is designed to proficiently distribute data, voice, and video, making it an essential component for modern networking. With the capacity to handle bandwidth-intensive applications up to 350 MHz and beyond, this 5-foot black cable ensures you stay ahead in the fast-paced digital world.

Each cable is meticulously crafted to meet all CAT5e TIA/EIA standards, significantly reducing both impedance and structural return loss (SRL) compared to standard 100 MHz wire. This results in improved data integrity and a more reliable network connection.

The Comprehensive CAT5e 350 MHz Assembly Cable is constructed with high-quality, durable materials for long-lasting performance. Its design features a shortened body plug without a boot, effectively minimizing Near-End Crosstalk (NEXT) levels, thereby enhancing signal quality.

Available in a sleek black color, this flexible and affordable CAT5e cable is perfect for those seeking to create a modern and organized network installation. Whether you're connecting computers, routers, or switches, this reliable networking cable is a smart choice for both home and office environments.

Comprehensive CAT5e 350 MHz Assembly Cable, 5', Black Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get a reliable connection with this 5-foot black CAT5e Ethernet cable for your network.
  • This CAT5e cable supports up to 350 MHz for fast data transfers, perfect for streaming.
  • Use this Ethernet cable with network adapters, routers, and modems for a stable link.
  • Enjoy a durable and long-lasting connection thanks to the high-quality construction.
  • This CAT5e cable meets TIA/EIA standards, ensuring compatibility and top performance.
  • Connect with confidence using gold-plated RJ45 connectors for a secure Ethernet connection.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (5'/Black)
  • Comprehensive Lifetime Limited Warranty
