What is the purpose of the CAT5e 350 MHz Assembly Cable?

The CAT5e 350 MHz Assembly Cable is designed to support fast ethernet and gigabit computer networks. It helps distribute data, voice, and video efficiently, making it a crucial component for any network setup.

What are the benefits of this cable reducing impedance and structural return loss (SRL)?

By reducing impedance and structural return loss (SRL), this cable ensures smoother, more reliable data transmission, enhancing the overall performance of your network.

What does it mean that this cable minimizes Near-End Crosstalk (NEXT) levels?

Minimizing Near-End Crosstalk (NEXT) levels means that the cable helps to reduce interference between different network signals, improving the quality of your network connection.

Why is this cable available in different colors?

The CAT5e 350 MHz Assembly Cable is available in a variety of colors to allow for easy color-coding of your network installation. This feature simplifies network management and troubleshooting.

Is this cable suitable for home network setups?

Yes, the CAT5e 350 MHz Assembly Cable is an ideal choice for both professional and home network setups due to its high-quality construction and performance.

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 5', Purple Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM, and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Purple

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    5' (1.5m)

  • Weight

    0.1 lb (45g)

  • UPC Code

    808447054521

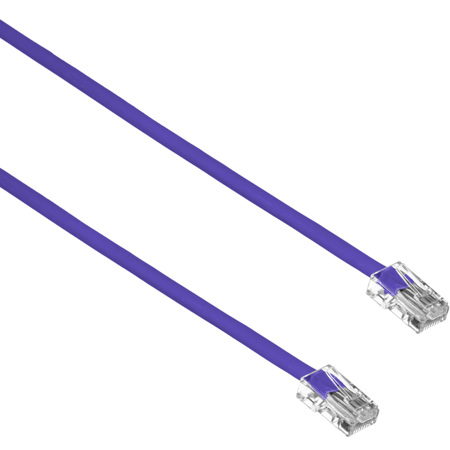

About Comprehensive CAT5e 350 MHz Assembly Cable, 5', Purple

An essential tool for modern high-speed networks, the CAT5e 350 MHz Assembly Cable in a vibrant purple hue is designed to support advanced fast ethernet and gigabit computer networks. This 5-foot cable is engineered to distribute data, voice, and video with exceptional efficiency, making it a crucial component for any robust network setup.

The Comprehensive's Assembly CAT5e 350 MHz Patch Cables are designed to keep your network at the forefront of technology, handling bandwidth-intensive applications up to 350 MHz and beyond. Each cable is meticulously crafted to meet all CAT5e TIA/EIA standards, ensuring reliable and consistent performance.

One of the standout features of this CAT5e cable is its ability to drastically reduce both impedance and structural return loss (SRL) when compared to standard 100 MHz wire. This reduction in interference ensures a smoother, more reliable data transmission, enhancing the overall performance of your network.

The cable is constructed with high-quality materials and features a shortened body plug without a boot. This unique design helps to minimize Near-End Crosstalk (NEXT) levels, further improving the quality of your network connection.

Available in a variety of colors, including this striking purple, the CAT5e 350 MHz Assembly Cable allows for easy color-coding of your network installation. This feature simplifies network management and troubleshooting, making it an ideal choice for both professional and home network setups.

Comprehensive CAT5e 350 MHz Assembly Cable, 5', Purple Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Designed for high-speed ethernet and gigabit computer networks
  • Capable of handling bandwidth-intensive applications up to 350 MHz and beyond
  • Meets all CAT5e TIA/EIA standards for reliable performance
  • Drastically reduces impedance and structural return loss (SRL) compared to standard 100 MHz wire
  • Unique design minimizes Near-End Crosstalk (NEXT) levels
  • Available in a variety of colors for easy network installation color-coding

What's in the box:

  • CAT5e 350 MHz Assembly Cable (5'/Purple)
  • Comprehensive Lifetime Limited Warranty
