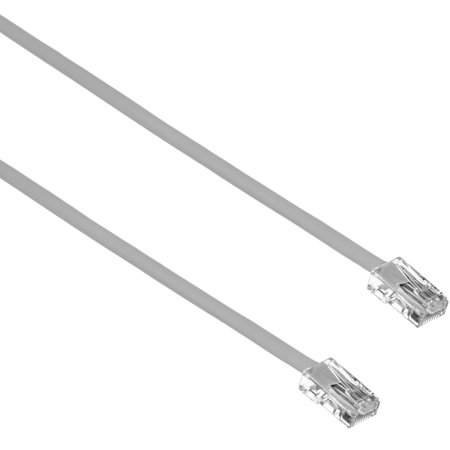

Comprehensive CAT5e 350 MHz Assembly Cable, 7', Gray

SKU: CV5EASY7GRY MFR: CAT5E-ASY-7GRY
$4.23
$5.29
Save: $1.06 (20%)
Earn VIP Reward Points

Key Features

  • Get reliable network connections with this 7-foot CAT5e Ethernet cable.
  • This gray CAT5e cable supports up to 350 MHz for fast data transfers.
  • Perfect for connecting network adapters, routers, and modems with RJ45 ports.
  • Enjoy a lifetime limited warranty on this durable, high-performance CAT5e cable.
  • Utilize this Ethernet cable for voice, data, and video applications at home.
  • Experience superior connectivity with gold-plated connectors on this CAT5e cable.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Assembly Cable, 7', Gray Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM, and Voice

  • Designed For

    Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and their twisted-pair applications

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Assembled connectors, no boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Gray

  • RoHS Compliant

    Yes

  • Certifications

    TIA/EIA

  • Length

    7' (2.13m)

  • Weight

    0.15 lb (68.03g)

  • UPC Code

    808447053739

About Comprehensive CAT5e 350 MHz Assembly Cable, 7', Gray

With the rapid evolution of fast ethernet and gigabit computer networks, the demand for high-speed cabling is more crucial than ever. Adorama's CAT5e 350 MHz Assembly Cable, measuring 7 feet in length and presented in a sleek gray color, is designed to meet this need, ensuring you stay ahead in the digital race.

This assembly cable is engineered to handle bandwidth-intensive applications up to 350 MHz and beyond, making it an ideal choice for distributing data, voice, and video across advanced network systems. Compliant with all CAT5e TIA/EIA standards, this cable offers superior performance by significantly reducing both impedance and structural return loss (SRL) when compared to standard 100 MHz wire.

The CAT5e 350 MHz Assembly Cable is constructed with high-quality materials, ensuring durability and long-lasting performance. The cable features a shortened body plug without a boot, a design element that effectively minimizes Near-End Crosstalk (NEXT) levels.

Available in a variety of colors, this assembly cable allows for easy color-coding of your network installation, simplifying management and maintenance. Whether you're setting up a home network or managing a large-scale business infrastructure, Adorama's CAT5e 350 MHz Assembly Cable is a reliable and efficient solution for your networking needs.

Comprehensive CAT5e 350 MHz Assembly Cable, 7', Gray Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable network connections with this 7-foot CAT5e Ethernet cable.
  • This gray CAT5e cable supports up to 350 MHz for fast data transfers.
  • Perfect for connecting network adapters, routers, and modems with RJ45 ports.
  • Enjoy a lifetime limited warranty on this durable, high-performance CAT5e cable.
  • Utilize this Ethernet cable for voice, data, and video applications at home.
  • Experience superior connectivity with gold-plated connectors on this CAT5e cable.

What's in the box:

  • CAT5e 350 MHz Assembly Cable (7'/Gray)
  • Comprehensive Lifetime Limited Warranty
