Questions & Answers

FAQ

What is the purpose of the reversed transmit and receive pairs in this CAT5e crossover cable?

The reversed transmit and receive pairs allow for direct computer-to-computer connections without the need for a hub, making it ideal for peer-to-peer networking.

What is the bandwidth of this CAT5e crossover cable?

This CAT5e crossover cable provides an impressive 350 MHz of bandwidth, ensuring high-speed data transfer.

Can I use this cable for adding hubs that lack a crossover port?

Yes, the design of this CAT5e crossover cable makes it an optimal choice for integrating hubs that do not have a crossover port.

Who is the manufacturer of this CAT5e crossover cable?

This CAT5e crossover cable is designed and manufactured by Comprehensive, a trusted name in networking and connectivity solutions.

How long is this CAT5e crossover cable?

This CAT5e crossover cable is 25 feet long, providing extensive reach for your networking needs.

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Crossover Cable, 25', Gray Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM

  • Designed For

    Peer-to-peer, hub-to-hub, transceiver to transceiver or repeater to repeater ethernet connection

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Crossover, molded snagless boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Gray

  • Certifications

    TIA/EIA

  • RoHS Compliant

    Yes

  • Length

    25' (7.62m)

  • Weight

    0.5 lb (226.79g)

  • UPC Code

    808447053241

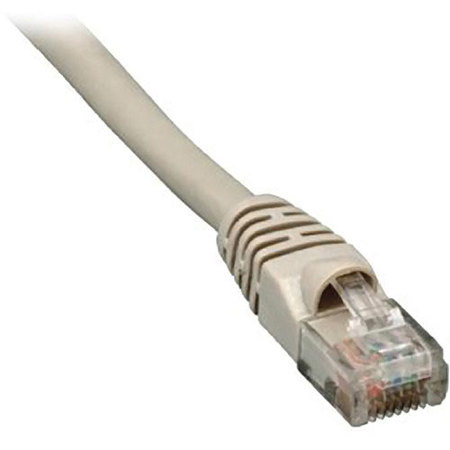

About Comprehensive CAT5e 350 MHz Crossover Cable, 25', Gray

Overcome networking challenges with the CAT5e 350 MHz Crossover Cable in a sleek gray finish. This 25-foot cable, designed by Comprehensive, is engineered to facilitate peer-to-peer computer connections, providing an impressive 350 MHz of bandwidth. The unique design of this CAT5e crossover cable reverses the transmit and receive pairs on one end, allowing for direct computer-to-computer connections without the necessity of a hub. This feature also makes it an optimal choice for integrating hubs that lack a crossover port. Crafted for high-speed data transfer, this cable is an essential tool for creating efficient and reliable networks. Experience seamless connectivity with the CAT5e 350 MHz Crossover Cable.

Comprehensive CAT5e 350 MHz Crossover Cable, 25', Gray Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • High-speed peer-to-peer connectivity with 350 MHz bandwidth
  • 25-foot CAT5e crossover cable for extensive reach
  • Reversed transmit and receive pairs for hub-free networking
  • Ideal for direct computer connections or adding non-crossover port hubs
  • Durable gray cable for a professional and discreet setup
  • Crafted by Comprehensive for reliable data transfer performance

What's in the box:

  • CAT5e 350 MHz Crossover Cable (25'/Gray)
  • Comprehensive Lifetime Limited Warranty
