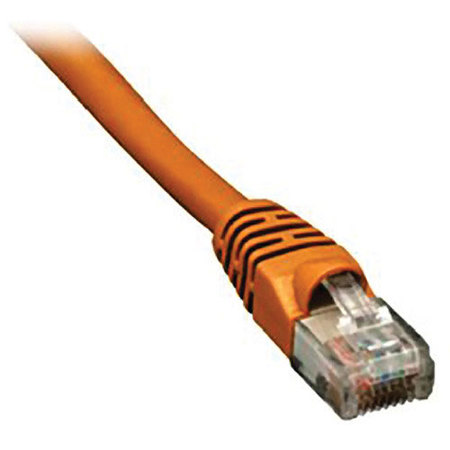

Comprehensive CAT5e 350 MHz Crossover Cable, 5', Orange

SKU: CV5EX5ORG

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the bandwidth capacity of this CAT5e 350 MHz Crossover Cable?

This CAT5e 350 MHz Crossover Cable can support a bandwidth of up to 350 MHz, ensuring optimal data transfer and performance.

Can this crossover cable connect devices other than computers?

Yes, this crossover cable is not only for connecting computers directly. It's also suitable for integrating additional hubs into your network setup, even those without a crossover port.

What is the length of this CAT5e 350 MHz Crossover Cable?

This CAT5e 350 MHz Crossover Cable is 5 feet (1.5 meters) long.

Why is the cable orange in color?

The vibrant orange color of the cable not only adds a touch of visual appeal but also aids in easy identification amidst a sea of cables.

What makes this CAT5e 350 MHz Crossover Cable reliable?

This cable is manufactured by Comprehensive, a brand known for its quality and reliability. It's also made to be durable and flexible, making it ideal for a wide range of networking applications.

Reviews about this item

Review Summary

Comprehensive CAT5e 350 MHz Crossover Cable, 5', Orange Specifications

  • Applications

    1000 BASE-T
    100 BASE-T
    10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5)
    100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5)
    55/155 Mbps ATM

  • Designed For

    Peer-to-peer, hub-to-hub, transceiver to transceiver or repeater to repeater ethernet connection

  • Wired

    TSB 568B (AT&T 258A)

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Crossover, molded snagless boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50-micron gold

  • Outer Diameter

    0.2" (5.3mm)

  • Jacket

    PVC

  • Jacket Color

    Orange

  • Certifications

    TIA/EIA

  • RoHS Compliant

    Yes

  • Length

    5' (1.52m)

  • Weight

    0.1 lb (45g)

  • UPC Code

    808447053364

About Comprehensive CAT5e 350 MHz Crossover Cable, 5', Orange

Be empowered to establish robust and reliable network connections with the CAT5e 350 MHz Crossover Cable. This high-quality, durable cable is designed to provide a whopping 350 MHz of bandwidth, ensuring seamless data transfer and optimal performance.

Manufactured by Comprehensive, a brand synonymous with reliability, this 5-foot (1.5 meters) crossover cable is engineered to facilitate peer-to-peer connections between computers. It achieves this by ingeniously reversing the transmit and receive pairs on one end of the cable, eliminating the need for a hub.

This versatile CAT5e crossover cable is not just for connecting computers directly. It's also an excellent solution for integrating additional hubs into your network setup, even those without a crossover port. Its flexibility and adaptability make it an ideal choice for a wide range of networking applications.

The cable's vibrant orange color not only adds a touch of visual appeal but also aids in easy identification amidst a sea of cables. Affordable and reliable, this CAT5e 350 MHz Crossover Cable is an essential tool for anyone looking to enhance their Ethernet connectivity.

Comprehensive CAT5e 350 MHz Crossover Cable, 5', Orange Features

  • 50-micron gold plated RJ-45 Male to Male Connector
  • 4-pair 24 AWG Stranded Copper Conductor
  • PVC Jacket
  • Exceeds Category 5e specifications

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • High-performance CAT5e 350 MHz crossover cable for robust network connections
  • Engineered by Comprehensive, a brand renowned for quality and reliability
  • Facilitates peer-to-peer connections between computers without needing a hub
  • Versatile design suitable for integrating additional hubs, even without a crossover port
  • Vibrant orange color for easy identification amidst other cables
  • Durable and flexible, ideal for a wide range of networking applications

What's in the box:

  • CAT5e 350 MHz Crossover Cable (5'/Orange)
  • Comprehensive Lifetime Limited Warranty
