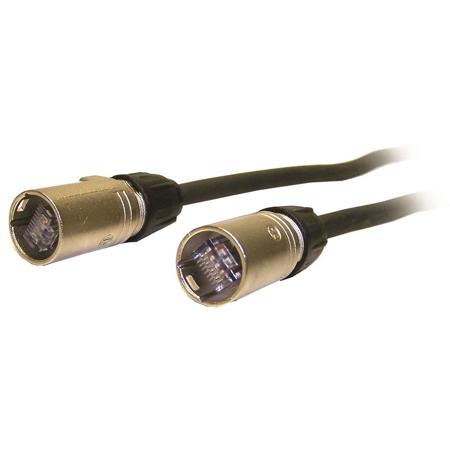

Comprehensive Pro AV/IT CAT6 Ethercon to RJ45 Heavy Duty Patch Cable, 300', Black

SKU: CV6300PBLKER

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Comprehensive Pro AV/IT CAT6 Ethercon Specifications

  • Connector Type 1

    Ethercon Male

  • Connector Type 2

    RJ45 Male

  • Gauge

    23AWG

  • Performance Grade

    Great

  • Bandwidth

    Supports voice/data/video distribution applications up to 550 MHz

  • Standards

    Meets all CAT6 TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Molded snagless boot

  • Conductors

    4 Twisted Pairs Bare copper solid cable

  • Conductor DC Resistance

    9.8 Ohm at 100m maximum

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50u gold

  • Jacket

    PVC

  • Boot Color

    Black

  • RoHS Compliant

    Yes

  • Length

    300' (91.4m)

  • Weight

    21 lb (9.52kg)

  • UPC Code

    808447072839

About Comprehensive Pro AV/IT CAT6 Ethercon

Comprehensive's Pro AV/IT CAT6 Heavy Duty Snagless Patch Cables are designed specifically for the most demanding commercial applications!

Comprehensive's Pro AV/IT CAT6 Heavy Duty Snagless Patch Cables are rugged, durable and built to last. Ethercon connectors, designed for professional audio and stage applications are ruggedized and lockable. What makes these cables so unique is they are engineered using high quality pro grade 23 gauge twisted pair construction that is then reinforced with a second heavy duty PVC jacket - making these the only Cat 6 cable for the demands of commercial applications of SMB, Government, Military, Rental and Staging and more. Pro AV/IT Cat 6 Heavy Duty Snagless Patch Cables also provide up to 550 MHz bandwidth for ultra-fast, high-speed signal transmission. Comprehensive Pro AV/IT CAT6 550 MHz Snagless Patch Cables meet all CAT6 TIA/EIA standards. Each, individual pair is attached together to ensure proper spacing between the twists of the wire which greatly reduces loss compared to standard 100 MHz cable.

Comprehensive's lengthindicators clearly specify the length of each cable on the connector mold which is a huge time-saver for installers who are constantly sorting out lengths preparing for jobs and rack building. Perfect for distributing data, voice and video on today's high speed ethernet and gigabit networks. These Pro AV/IT CAT6 550 MHz Snagless Patch Cables have a molded, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief. RoHS Compliant. Attention! Does not intermate with CAT6 chassis connectors.

Attention! The Neutrik Ethercon NE8MC connector does not intermate with the push-pull NE8FDY-C6 CAT6 chassis connectors.

Comprehensive Pro AV/IT CAT6 Ethercon Features

  • Heavy Duty 23 Gauge Pro Grade Construction
  • Constructed with Comprehensives Accu-Twist Design
  • Length indicators on the connector heads make it easy to organize for installations
  • The perfect solution for demanding environments including Staging, Military, and Education
  • Rated CAT6 with up to 550 MHz High Speed
  • Meets all Category 6 568B 2.1 Draft 9 TIA/EIA standards
  • Ethercon Male to RJ45 Male
  • Snagless boot for easy installation
  • Re-enforced heavy duty jacket
  • RoHS Compliant
  • UL Rated

Key Features

  • Heavy Duty 23 Gauge Pro Grade Construction
  • Constructed with Comprehensives Accu-Twist Design
  • Length indicators on the connector heads make it easy to organize for installations
  • The perfect solution for demanding environments including Staging, Military, and Education
  • Rated CAT6 with up to 550 MHz High Speed
  • Meets all Category 6 568B 2.1 Draft 9 TIA/EIA standards

What's in the box:

  • Pro AV/IT CAT6 Ethercon to RJ45 Heavy Duty Patch Cable (300'/Black)
  • Comprehensive Lifetime Limited Warranty
