Comprehensive 1000' Cat 5e Plenum 350Mhz Bulk Cable, Solid Gray
See all Comprehensive items

Comprehensive 1000' Cat 5e Plenum 350Mhz Bulk Cable, Solid Gray

SKU: CVC5EP350G1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive C5EP350G-1000 Specifications

  • Conductors

    4 Twisted Pairs 24 AWG Plenum Rated solid bare copper cable

  • Bandwidth

    Supports voice/data/video distribution applications up to 350Mhz

  • Standards

    Meets all Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Outer Diameter

    5.3mm

  • UL Rating

    CMP

  • Jacket

    Plenum

  • RoHS Compliant

    Yes

  • Weight

    27lbs / 12.15kg

  • UPC Code

    808447060003

About Comprehensive C5EP350G-1000

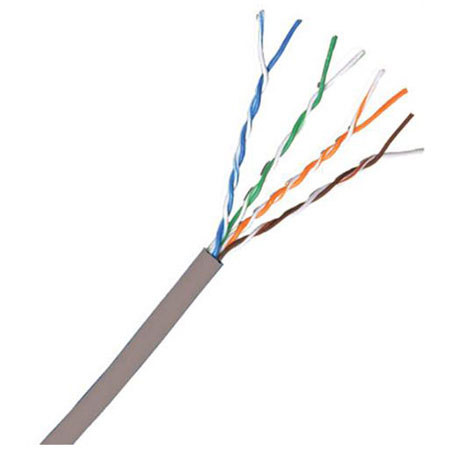

Comprehensive 1000' Cat 5e Plenum 350Mhz Solid Gray Bulk Cable is 4 unshielded twisted pairs, solid 24 awg. Comprehensive Cat5e 350Mhz Bulk Cable is ideal for your network installation. Available in PVC and Plenum rated jackets, Comprehensive 350Mhz cable can be installed just about anywhere. Exceeding Cat5e 100Mhz standards, Comprehensive Bulk Cabling has you covered! UL listing NEC,CMP/MPP. Nominal O.D. is 0.206 inches. Meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations.

Comprehensive C5EP350G-1000 Features

  • 4-pair unshielded twisted pair cable
  • 24AWG solid bare copper conductor
  • Meets or exceeds Cat5e specifications
  • Rated to 350Mhz to provide additional performance and bandwidth over and above the basic requirements of Cat5e 100Mhz standards
  • High-density polyethylene insulation, PVC jacket
  • Foot-marked cable packaged in EZ pull box
  • Ideal for 10Base-T(IEEE 802.3), 100Base-TX(IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN(IEEE 802.12), Token Ring(IEEE 802.5), TP-PMD(ANSI X3T9.5), 350 Mbps CDDI, ATM 155, Voice and Multimedia
  • CM/CMR rated for use in walls and conduit in ceiling
  • Verified compliant with EIA/TIA standards by ETL
  • CSA listed

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4-pair unshielded twisted pair cable
  • 24AWG solid bare copper conductor
  • Meets or exceeds Cat5e specifications
  • High-density polyethylene insulation, PVC jacket
  • Foot-marked cable packaged in EZ pull box
  • CM/CMR rated for use in walls & conduit in ceiling
