Comprehensive 1000' CAT5e 350MHz Shielded Stranded LAN Cable, Black Specifications

  • Cable Length

    1000' / 304.8m

  • Conductors

    4 Twisted Pairs 24 AWG Shielded bare copper stranded cable

  • Bandwidth

    Supports voice/data/video distribution applications up to 350 MHz

  • Standards

    Meets all Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Outer Diameter

    6.1mm / 0.24"

  • UL Rating

    CMR11

  • Jacket

    PVC

  • RoHS Compliant

    Yes

  • Electrical

    Temperature rating: 75deg.C
    Spark test: AC-2000V/0.15sec MIN
    Dielectric strength: AC-750V/1sec MIN
    Insulation resistance: PE:DC-500V 1500MW /100M MIN. at 20deg.C

  • Capacitance

    Mutual capacitance: 5.6nF/100M, MAX
    Pair to ground Unbalance: 330pF/100M, MAX
    D-C Resistance: 8.76 ohm/100M at 20deg.C MAX
    D-C Resistance Unbalance: 5%, MAX.
    Impedance: 100+/-15ohm at 100-350MHz

  • Weight

    27lbs /12.24kg

  • UPC Code

    808447068245

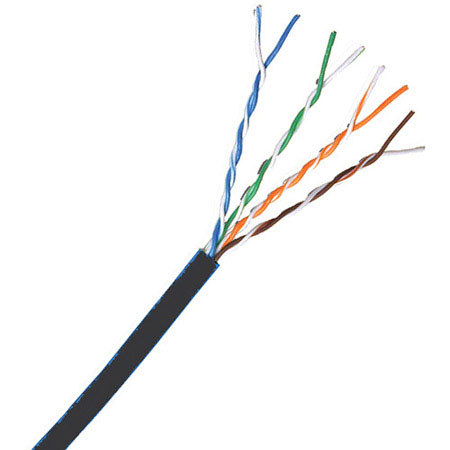

About Comprehensive 1000' CAT5e 350MHz Shielded Stranded LAN Cable, Black

The Comprehensive 1000' CAT5e 350MHz Shielded Stranded LAN Cable (Black) features 4 shielded twisted pairs with stranded 24 AWG conductors and is suitable for installation in high EMI/RFI environments. This 350MHz cable has a PVC jacket and can be installed in a variety of environments. It is suitable for network wiring in your home, office, or an entire campus. Exceeding CAT5e 100 MHz standards, this LAN cable meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations. The foot-marked cable is packaged in a pull box for easier installation.

4-pair shielded twisted pair cable
24AWG stranded bare copper conductor
Meets or exceeds Cat5e specifications
Rated to 350Mhz to provide additional performance and bandwidth over and above the basic requirements of Cat5e 100MHz standards
High-density polyethylene insulation, PVC jacket
Foot-marked cable packaged in EZ pull box
Ideal for 10Base-T(IEEE 802.3), 100Base-TX(IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN(IEEE 802.12), Token Ring(IEEE 802.5), TP-PMD(ANSI x3T9.5), 350 Mbps CDDI, ATM 155, Voice and Multimedia
CM/CMR rated for use in walls and conduit in ceiling
Verified compliant with EIA/TIA standards by ETL
CSA listed
