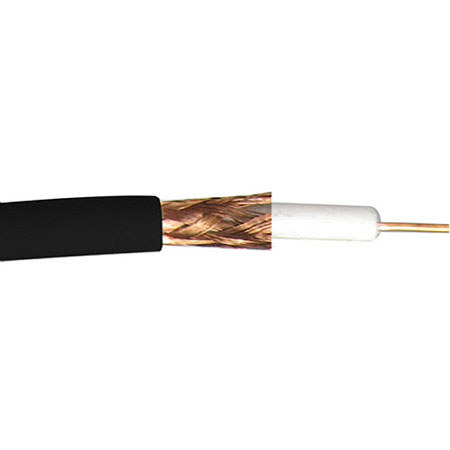

Comprehensive 1000' RG6 SDI/HDTV 18 AWG BC CATV Coaxial Plenum Bulk Cable
See all Comprehensive items

Comprehensive 1000' RG6 SDI/HDTV 18 AWG BC CATV Coaxial Plenum Bulk Cable

SKU: CVC6SDIP1BR
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive CVC-6SDI/P-500BR: Picture 1 regular
Comprehensive 500' RG6 SDI/HDTV 18 AWG BC CATV Coaxial Plenum Bulk Cable
$429.50$359.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive CVC-6SDI/P-1000BR Specifications

  • Coax Quantity

    1

  • Center Conductor

    18 AWG Solid Bare Copper

  • Dielectric

    .170" Foam FEP Teflon

  • Shield

    95% Tinned Copper Braid

  • Impedance

    75 Ohms

  • Capacitance per Ft

    16.2 pF/ft

  • NOM Velocity of Propagation

    82%

  • Attenuation at 200MHz at 100ft

    2.56dB

  • Attenuation at 400MHz at 100ft

    3.65dB

  • Attenuation at 1000MHz at 100ft

    5.99dB

  • Bulk Lengths

    500/1000

  • Jacket

    Low Smoke PVC

  • Jacket Color

    Black

  • Overall Diameter

    .234"

  • UL Rating

    CMP, FT6

  • Temperature Rating

    75 deg C

  • Weight

    33lbs /14.96kg

  • RoHS Compliant

    Yes

  • UPC Code

    808447068948

About Comprehensive CVC-6SDI/P-1000BR

The Comprehensive 1000' RG6 SDI/HDTV 18 AWG BC CATV Plenum Bulk Cable is constructed of an 18 AWG bare copper center conductor, plenum jacket, foam FEP dielectric and 95% tightly woven tinned copper braid shield. Perfect for heavy-duty, low loss Digital and HDTV applications and preferred for long distance runs. Sweeptested to 3 GHz. UL CMP and FT6 rated.

Comprehensive CVC-6SDI/P-1000BR Features

  • 18 awg solid Bare Copper conductor
  • Low smoke flame resistant polyvinylchloride jacket
  • Excellent attenuation for long runs of SDI video
  • 95% tinned copper braid shield and aluminum mylar wrap
  • CMP/FT6 rated for use in walls and in ceiling
  • UL/cUL or ETL Listed
  • Sequential foot markers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 18 awg solid Bare Copper conductor
  • Low smoke flame resistant polyvinylchloride jacket
  • Excellent attenuation for long runs of SDI video
  • 95% tinned copper braid shield & aluminum mylar wrap
  • CMP/FT6 rated for use in walls & in ceiling
  • UL/cUL or ETL Listed
