20% Off

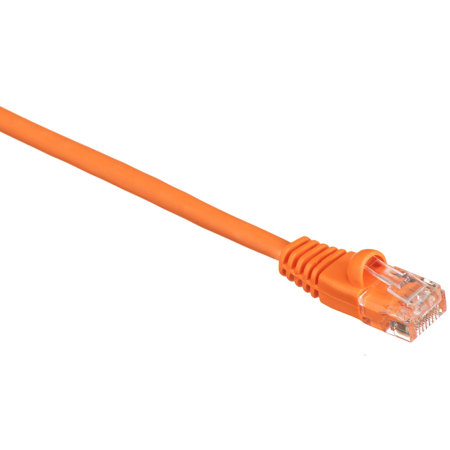

Comprehensive 3' Cat5e 350Mhz Snagless Patch Cable, Orange

SKU: CVCAT53503OR MFR: CAT5-350-3ORG
$2.63
Earn VIP Reward Points

Key Features

  • Get reliable connectivity with this 3 ft Cat5e Ethernet cable, perfect for home or office.
  • Enjoy snagless design for easy cable management & prevent damage to your network cable.
  • This Cat5e patch cable supports up to 350MHz, ideal for voice, data, and video needs.
  • Ensure a stable connection with our high-quality RJ45 connectors, gold plated for durability.
  • Our orange Cat5e cable is verified to EIA/TIA 568B.2 standards, guaranteeing performance.
  • Built with 24 AWG copper wire, this Ethernet cable offers superior conductivity for data.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Comprehensive CAT5-350-3ORG Specifications

  • Connector Type 1

    RJ45 Male

  • Connector Type 2

    RJ45 Male

  • Performance Grade

    Good

  • Bandwidth

    Supports voice/data/video distribution applications up to 350Mhz

  • Standards

    Meets all Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Cable Style

    Molded snagless boot

  • Conductors

    4 Twisted Pairs 24 AWG Bare copper stranded cable

  • Conductor DC Resistance

    89 Ohm/km (maximum)

  • Insulation Resistance

    100 Ohm/km (minimum)

  • Connector Material

    Polycarbonate

  • Contact Material

    Copper alloy plated with 50u gold

  • Outer Diameter

    5.3mm

  • Jacket

    PVC

  • RoHS Compliant

    Yes

  • Weight

    0.1lbs / 0.05kg

  • UPC Code

    808447024579

About Comprehensive CAT5-350-3ORG

Comprehensive 3' Cat5e Snagless Patch Orange Cable provide 350 Mhz bandwidth for high-speed signal transmission for distributing data, voice and video on today's high speed ethernet and gigabit networks. Comprehensive 3' Cat5e 350Mhz Snagless Patch Cable meet all CAT5E TIA/EIA standards. Each individual pair is attached together to ensure proper spacing between the twists of the wire which greatly reduces loss compared to standard 100Mhz cable. Applications include 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI x3T9.5), 55/155 Mbps A and Voice.

Comprehensive 3' Cat5e 350Mhz Snagless Patch Cable have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief.

Comprehensive CAT5-350-3ORG Features

  • Gold Plated RJ45 Male to RJ45 Male
  • CAT5E 350 Mhz High Speed
  • 24 awg 4 pair twisted pair construction
  • Meets all 568A and 568B TIA/EIA standards
  • Snagless Boot for easy installation
  • X-traflex jacket
  • RoHS Compliant
  • UL Rated

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Get reliable connectivity with this 3 ft Cat5e Ethernet cable, perfect for home or office.
  • Enjoy snagless design for easy cable management & prevent damage to your network cable.
  • This Cat5e patch cable supports up to 350MHz, ideal for voice, data, and video needs.
  • Ensure a stable connection with our high-quality RJ45 connectors, gold plated for durability.
  • Our orange Cat5e cable is verified to EIA/TIA 568B.2 standards, guaranteeing performance.
  • Built with 24 AWG copper wire, this Ethernet cable offers superior conductivity for data.
