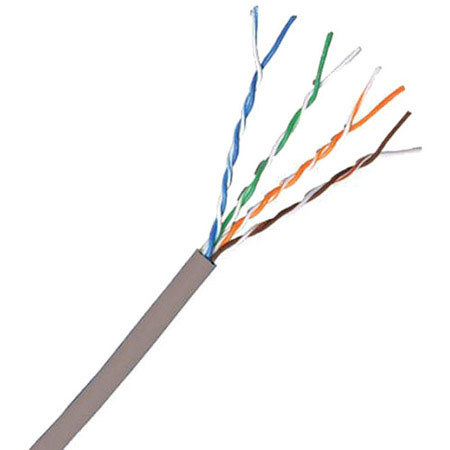

Comprehensive 1000' Cat 6 550Mhz Plenum UTP Bulk Cable, Solid Gray
See all Comprehensive items

Comprehensive 1000' Cat 6 550Mhz Plenum UTP Bulk Cable, Solid Gray

SKU: CVCAT6PG1
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Comprehensive : Picture 1 regular
Comprehensive CAT6 550 MHz Snagless Patch Cable, USA Made, 10', Gray
$24.99$19.99
Comprehensive : Picture 1 regular
Comprehensive CAT6 550 MHz Snagless Patch Cable, USA Made, 14', Gray
$27.99$22.39
Comprehensive : Picture 1 regular
Comprehensive CAT6 550 MHz Snagless Patch Cable, 1', Gray
$3.99$3.19
Comprehensive : Picture 1 regular
Comprehensive CAT6 550 MHz Snagless Patch Cable, USA Made, 25', Gray
$40.99$32.79
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Comprehensive CAT6PG-1000 Specifications

  • Conductors

    4 Twisted Pairs 23 AWG Plenum Solid bare copper cable

  • Bandwidth

    Supports voice/data/video distribution applications up to 550Mhz

  • Standards

    Meets all Cat6 TIA/EIA standards, Verified to EIA/TIA 568B.2

  • Conductor DC Resistance

    9.8 Ohm at 100m maximum

  • Outer Diameter

    6.3mm

  • UL Rating

    CMP

  • Jacket

    Plenum

  • RoHS Compliant

    Yes

  • Weight

    27lbs / 12.15kg

  • UPC Code

    808447059779

About Comprehensive CAT6PG-1000

Comprehensive 1000' Cat 6 550Mhz Plenum UTP Solid Gray Bulk Cable is 4 unshielded twisted pairs, solid 23 awg. Supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, Ethernet 1000BASE-T and emerging applications with anticipated data rates to 3.2Gbps. UL listing NEC,CMP/MPP. Nominal O.D. is 0.25 inches. Meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations.

Comprehensive CAT6PG-1000 Features

  • 4-pair unshielded twisted pair cable
  • Polyethylene separator for enhanced NEXT, ELFEXT and RL Bandwidth
  • 23AWG solid bare copper conductors for superior conductivity
  • Meets EIA/TIA CAT6 specifications
  • Durable, high-density polyethylene insulation, PVC jacket
  • Ideal for 10Base-T(IEEE 802.3), 100Base-TX(IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN(IEEE 802.12), Token Ring(IEEE 802.5), TP-PMD(ANSI X3T9.5), 550 Mbps CDDI, ATM 155 and all proposed Category 6 requirements for high-speed, full duplex, parallel transmission protocols
  • CMP rated for single floor, general purpose use in walls and ceilings
  • Verified compliant with EIA/TIA standards by ETL
  • CSA listed

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4-pair unshielded twisted pair cable
  • Polyethylene separator for enhanced NEXT, ELFEXT & RL Bandwidth
  • 23AWG solid bare copper conductors for superior conductivity
  • Meets EIA/TIA CAT6 specifications
  • Durable, high-density polyethylene insulation, PVC jacket
  • CMP rated for single floor, general purpose use in walls & ceilings
